Coal-to-chemicals is the process of converting coal into chemical products, including methanol, ammonia, olefins, and aromatics. Its development has been driven by resource conditions, as many regions have abundant coal but limited access to more traditional feedstocks like oil and gas. By using coal as a feedstock, industries hope to reduce their dependence on imports, strengthen their regional energy security, and broaden their supply base for fuels and chemicals. Advances in gasification and catalytic technologies have also expanded the range of petrochemical products that can be made from coal. At the same time, the industry encounters important challenges, since coal-to-chemicals pathways typically involve high energy consumption and considerably higher greenhouse gas emissions compared to other feedstocks.

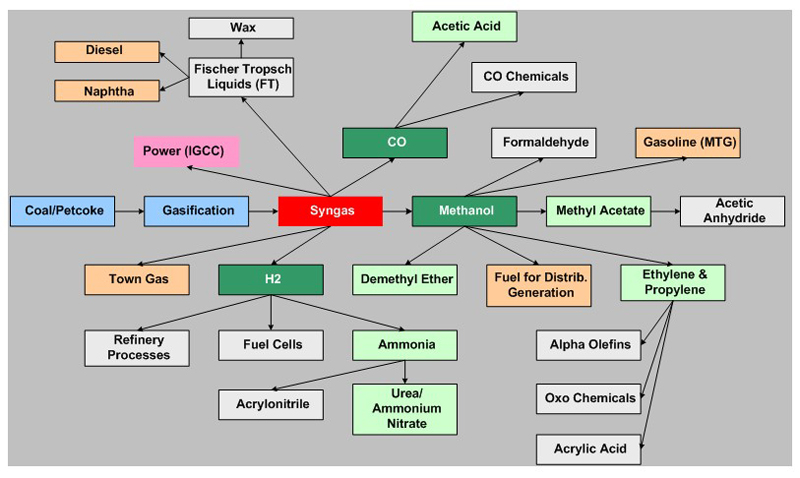

Source: Coal-to-chemical routes, U.S. National Energy Technology Laboratory.

Step 1: Coal to Syngas

Through thermochemical coal gasification, coal is transformed into synthesis gas, commonly known as syngas. In a gasifier operating at high temperature (up to around 2600 °F) and pressure (up to 1200 psig), coal reacts with steam and carefully controlled amounts of oxygen or air. As the coal moves through the gasifier, it undergoes a series of transformations involving reactions among carbon (C), steam (H₂O), oxygen (O₂), hydrogen (H₂), carbon monoxide (CO), carbon dioxide (CO₂), and methane (CH₄). The resulting syngas, a mixture of mainly CO and H₂ (plus smaller amounts of CO₂, CH₄, and N₂), can then be used to generate electricity, produce purified hydrogen, or serve as a versatile feedstock for a range of fuels and chemical products.

Step 2: Syngas to Chemicals

Syngas serves as the critical bridge between coal and a broad spectrum of chemical products. By adjusting its composition and applying different catalytic processes, syngas can be converted into diverse downstream chemicals. Before being used in downstream processes, syngas is typically purified to remove impurities such as mercury (Hg), hydrogen sulfide (H₂S), and carbon dioxide (CO₂), while sulfur compounds are often recovered as elemental sulfur (S). Once cleaned, it becomes a flexible chemical intermediate: its main components, CO and H₂, serve as the fundamental building blocks for a wide array of products. Syngas can be catalytically converted into methanol (CH₃OH), which can then serve as an intermediate for derivatives including methyl acetate, acetic acid, formaldehyde, olefins, and aromatics. Syngas also supports catalytic pathways to produce ammonia, urea and other synthetic fertilizers, and synthetic transportation fuels. This central role of syngas naturally introduces the core conversion technologies including syngas-to-ammonia, syngas-to-methanol, methanol-to-olefins, and methanol-to-aromatics, which transform coal into a broad portfolio of valuable chemical products.

Syngas to Ammonia

Ammonia (NH₃) is one of the most widely produced bulk chemicals, with over 80% of global output used for fertilizer production such as urea. Other applications include nitric acid for explosives, polyamides such as nylon for textiles, pharmaceuticals, plastics, fibers, and cleaning products. In addition, ammonia is applied as an efficient refrigerant due to its favorable thermodynamic properties and is increasingly explored as a low-carbon energy carrier.

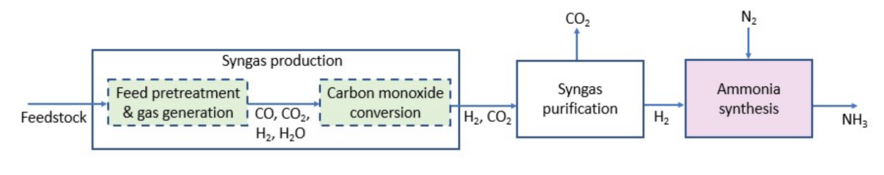

Source: Main ammonia production steps, Masanet, et al., University of California Santa Barbara, 2022.

The syngas, containing hydrogen (H₂), carbon monoxide (CO), and carbon dioxide (CO₂), is processed through purification and conditioning to produce high-purity hydrogen (H₂). This hydrogen is mixed with nitrogen (N₂) extracted from the air separation unit at the appropriate stoichiometric ratio and reacted under high pressure and temperature to form ammonia (NH₃). The stoichiometric ratio is the optimal amount of each reactant required for the chemical reaction to complete fully, with no excess remaining.

Key Process Steps:

• Water-Gas Shift (WGS): The syngas is first passed through the shift reactor, where CO is converted into H2 and CO2 following the shift reaction.
• CO₂ Removal: Then the gas is passed through a CO2 scrubber, where a scrubbing liquid absorbs the CO2; this liquid is passed to a regenerator for regeneration by stripping the CO2 from it.
• Final Purification: The cleaned gas then goes through a methanation reactor to remove any residual CO or CO2 by converting it into CH4.
• Nitrogen Supply: N₂ is separated from air.
• H₂-N₂ Mixing: The pure mixture of hydrogen is mixed with pure nitrogen at the appropriate stoichiometric ratio.
• Ammonia Synthesis (Haber-Bosch Process): Conducted at 350-550 °C and at high pressure > 2,000 psi (100-250 bar) over iron or ruthenium-based catalysts.
• Product Separation & Gas Recycling: After synthesis, the reactor effluent, a mixture of ammonia and unreacted syngas (H₂ and N₂), is cooled to condense and separate the ammonia. The remaining gases are recompressed, mixed with fresh syngas, and recycled to the converter, forming a closed loop that improves overall efficiency.

Syngas to Methanol

Methanol is a versatile and important primary chemical widely used across industries. It serves as a chemical feedstock for producing key industrial products such as formaldehyde, acetic acid, methyl methacrylate (MMA), methyl tertiary-butyl ether (MTBE), and synthetic hydrocarbons. Beyond its role as a feedstock, methanol is also used directly as a fuel or in blends, and can be converted to gasoline via the methanol-to-gasoline (MTG) process or to dimethyl ether (DME) for use in diesel engines and turbines. In addition, methanol functions as a hydrogen carrier and plays an important role in renewable fuels and green chemical applications.

Most methanol is made from syngas produced, with about 55-65% of global production from natural gas via Steam Methanol Reforming, 30-35% from coal via gasification, and the remainder from coking gas and other feedstocks.

Methanol (CH₃OH) is synthesized through highly exothermic catalytic reactions of hydrogen (H₂), carbon monoxide (CO), and carbon dioxide (CO₂):

• 2 H₂ + CO → CH₃OH
• CO₂ + 3 H₂ → CH₃OH + H₂O
• CO + H₂O → CO₂ + H₂ (Water-Gas Shift, WGS)

Syngas containing H₂, CO, and CO₂ is first purified to remove impurities and conditioned to adjust the H₂/CO ratio. Since syngas often has a low H₂/CO ratio, an extensive WGS reaction is needed to reach the stoichiometric ratio of ~2. The clean syngas is then passed over a copper-based catalyst (Cu/ZnO/Al₂O₃) at high pressure (50-100 bar) and moderate temperature (200-320°C). In this step, CO and CO₂ react with hydrogen to form methanol (CH₃OH). The product is subsequently condensed and separated, while unreacted gases are recycled to the reactor.

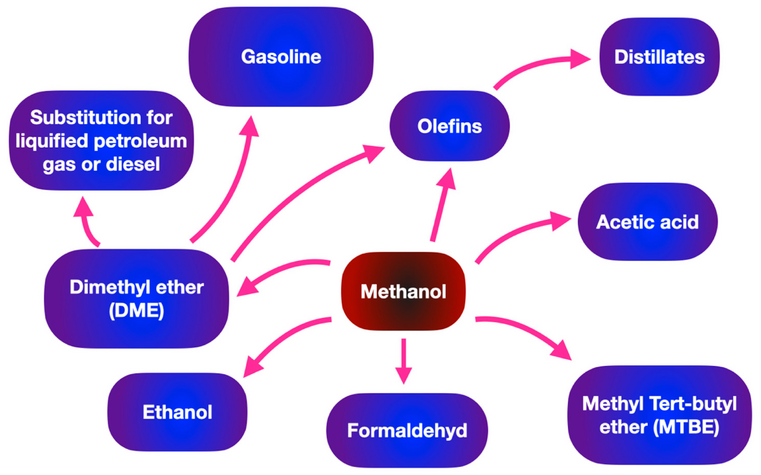

Source: Applications of methanol in fuel and chemical industries, Dalai, et al., 2024.

Methanol to Olefins (MTO)

Olefins (CₙH₂ₙ)​, such as ethylene (C₂H₄) and propylene (C₃H₆), are fundamental building blocks in the petrochemicals industry, with growing global demand. Traditionally, they are produced via steam cracking of naphtha or ethane. Methanol-to-Olefins (MTO) technology provides an alternative pathway by converting methanol (CH₃OH) into light olefins. Regions that utilize the MTO pathway generally produce their methanol via coal gasification, since regions with abundant natural gas and crude oil feedstocks would typically produce methanol (via Steam Methane Reforming) and olefins (via steam cracking) separately.

Key Process Steps:

• Feed Preparation: Crude or high-purity methanol, typically derived from syngas (CO + H₂), is conditioned for the reactor. Recycled water may be added.
• Catalytic Conversion: The methanol feed is introduced into a fluidized-bed catalytic reactor. Using a silicoaluminophosphate-based catalyst, methanol is converted into light olefins, primarily ethylene and propylene.
• Catalyst Regeneration: Similar to fluid catalytic cracking, a portion of the catalyst is continuously withdrawn and sent to a regenerator, where coke deposits are burned off with air. The regenerated catalyst is recycled to maintain steady-state operation.
• Separation & Purification: Reactor effluent is cooled to condense unreacted methanol and water for recycling. Remaining gases are compressed, CO₂ and water are removed, and the hydrocarbon mixture is fractionated by distillation to produce polymer-grade ethylene and propylene, along with minor amounts of methane, ethane, propane, butane, and higher hydrocarbons.
• Olefin Cracking (Optional): Heavier byproducts (C4+ fractions) can be processed in an Olefin Cracking unit to maximize ethylene and propylene yield, improving overall feedstock efficiency.

Key Parameters:

The MTO process typically utilizes a fluidized-bed catalytic reactor with continuous catalyst circulation and regeneration. The typical catalyst is a silicoaluminophosphate-based molecular sieve, which is highly selective for ethylene and propylene and designed for long-term stability and low attrition under fluidized bed conditions. The reaction itself operates at a temperature around 350°C and pressure around 2 bar. An important metric for the product stream is the ethylene-to-propylene (E/P) ratio, which is adjustable depending on operating conditions. Methanol conversion is near-complete under typical operating conditions, with around 75-85% carbon selectivity to light olefins (ethylene + propylene)

Methanol to Aromatics (MTA)

Aromatics are a major class of petrochemical products, among which benzene, toluene, and xylene (BTX) are the most important representatives. BTX compounds are widely applied as chemical raw materials, serving as synthetic monomers or solvents in medicine, pesticides, plastics, and other industries. Methanol to Aromatics (MTA) technology provides a direct, non‑petroleum pathway to produce BTX by converting methanol, typically derived from syngas via coal gasification, into high‑value aromatics. The process relies on shape‑selective zeolite catalysts under moderate pressure and elevated temperature, where methanol first forms light olefins and subsequently aromatizes into BTX.

Key Process Steps:

• Feed Preparation: Crude or refined methanol is vaporized and mixed with recycled streams (light hydrocarbons or water as needed) to stabilize reaction conditions.
• Catalytic Conversion: The vaporized methanol feed enters a fixed-bed or fluidized-bed reactor containing zeolite catalysts, commonly ZSM-5. Through dehydration and hydrocarbon pool mechanisms, methanol is first converted to olefins and subsequently aromatized into BTX.
• Catalyst Regeneration: As coke accumulates during the aromatization reactions, a regeneration step is periodically required. Regeneration is generally carried out with oxygen-containing gas to burn off coke and restore catalyst activity.
• Product Recovery: Reactor effluent is cooled and separated. Unreacted methanol and water are condensed and recycled. The hydrocarbon product stream is fractionated to isolate light gases (methane, ethane, LPG), aromatics (BTX), and heavier byproducts.
• Integration (Optional): Heavy fractions (C₉⁺) can be hydrotreated, reformed, or further cracked to maximize BTX yield and improve carbon efficiency. Light hydrocarbon gases can be recycled back to the reactor or used as fuel.

Key Parameters:

The MTA process typically uses shape-selective zeolite catalysts (ZSM-5 or modified versions) with tailored acidity to maximize BTX yield and suppress excessive coke formation. Typical reaction temperature ranges from 350-550 °C with pressure around 20-25 bar for a high single-pass aromatics selectivity. The product spectrum is rich in BTX (benzene, toluene, xylenes), plus smaller amounts of light olefins and paraffins. MTA units can be integrated with methanol-to-olefins (MTO) units or downstream refining to tailor products toward either aromatics or olefins.
