Sichuan–Shanghai Parallel Gas Pipeline 川气东送二线, also known as the Second Sichuan–East Gas Transmission Pipeline, is a gas pipeline with segments that are proposed and in construction in China.[1]

Location

The pipeline will run from Weiyuan, Sichuan, China to Wenzhou, Zhejiang, China. Its route is mostly parallel to that of the Sichuan–Shanghai Gas Pipeline,[1] but divergent to it after Xuancheng, Anhui, heading to Zhejiang Province, and ending up in Wenzhou, Zhejiang.[2]

Loading map...

Background

The sources of the pipeline are multiple gas fields in the Sichuan Basin.

On May 22, 2021, a feasibility report of the pipeline passed expert review. [1]The Sichuan–Shanghai Parallel Gas Pipeline has a total length of 4,269 kilometers, passing through eight provinces and municipalities including Sichuan, Chongqing, Hubei, Henan, Jiangxi, Anhui, Zhejiang, and Fujian. The entire line is approved for construction in phases, divided into the western section (Sichuan–Chongqing–Hubei section) and the eastern section (Hubei–Henan–Jiangxi–Anhui–Zhejiang–Fujian section). Construction of the western section officially commenced in September 2023, with Phase I now over 70% complete.[3]

Project details

Western Section (Sichuan–Chongqing–Hubei) 川气东送二线西段（川渝鄂段）

The Western Section (Sichuan–Chongqing–Hubei) of the Sichuan–Shanghai Parallel Gas Pipeline officially commenced construction on September 15, 2023. It consists of one main trunk line and 12 branch lines, with a total length of 1,576 kilometers, passing through the three provinces and municipalities of Sichuan, Chongqing, and Hubei.[4]

The Weiyuan–Qiangjiang Trunk Gas Pipeline is the main trunk line of the Western Section (Sichuan–Chongqing–Hubei) and is composed of Weiyuan/Lu County —Tongliang Trunk Line and Tongliang—Qianjiang Trunk Line.

Loading map...

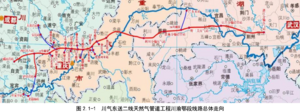

Screenshot 2024-09-18 at 3.23.06 PM.png

Weiyuan/Lu County —Tongliang Trunk Line 威远/泸县—铜梁输气干线

  • Operator: National Pipe Network Group Southwest Pipeline Co.,Ltd.（ 国家管网集团西南管道有限责任公司）[5]
  • Owner: National Pipe Network Group Southwest Pipeline Co.,Ltd.（ 国家管网集团西南管道有限责任公司）
  • Parent company:
  • Capacity: 20 bcm/year[5]
  • Length: 282.77 km[5]
  • Diameter: 1016 mm( Weiyuan-Neijiang), 1219 mm(Lu County-Tongliang)[5]
  • Status: Construction[6][7]
  • Start year:
  • Cost: 6.123 billion RMB[5]

Tongliang—Qianjiang Trunk Line 铜梁—潜江输气干线

  • Operator: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司)[8]
  • Owner: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司)[8]
  • Parent company:
  • Capacity: 20.2 bcm/year[9]
  • Length: 855 km[9]
  • Diameter: 1219 mm[8]
  • Status: Construction[9]
  • Start year:
  • Cost: 24.028 billion RMB[10]

Daying-Anyue-Tongliang Gas Pipeline 大英-安岳-铜梁支干线

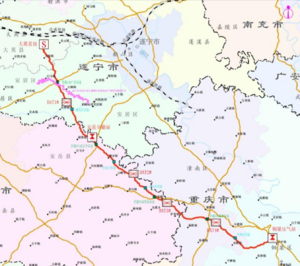

Screenshot 2024-09-18 at 8.02.39 PM.png
  • Operator: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司)[11]
  • Owner: National Petroleum and National Gas Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司)
  • Parent company:
  • Length: 121 km [11]
  • Capacity: 6.19bcm/year[12]
  • Diameter: 711 mm[11]
  • Status: Proposed[13]
  • Start year:
  • Cost:

Moujiaping and Laowengchang Gas Storage Pipeline 牟家坪老翁场储气库支干线

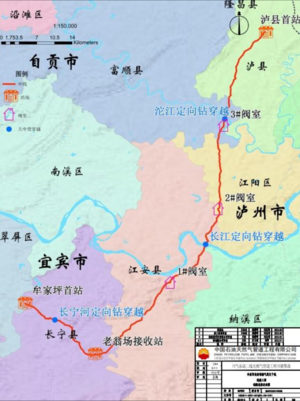

Screenshot 2024-09-18 at 6.23.46 PM.png
  • Operator: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [11]
  • Owner: National Petroleum and National Gas Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司)
  • Parent company:
  • Length: 100.9 km [11]
  • Capacity: 11.60 bcm/year[12]
  • Diameter: 914 mm[11]
  • Status: Proposed[13]
  • Start year:
  • Cost:

Tongluoxia Gas Storage Branch 铜锣峡储气库支干线

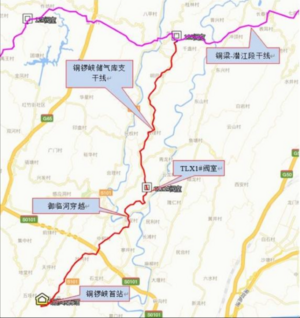

Screenshot 2024-09-18 at 2.58.15 PM.png
  • Operator: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [11]
  • Owner: National Petroleum and National Gas Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司)
  • Parent company:
  • Length: 33.56 km [11]
  • Capacity: 2.66 bcm/year[12]
  • Diameter: 711 mm[11]
  • Status: Proposed[13]
  • Start year:
  • Cost:

Huangcaoxia Gas Storage Branch 黄草峡储气库支干线

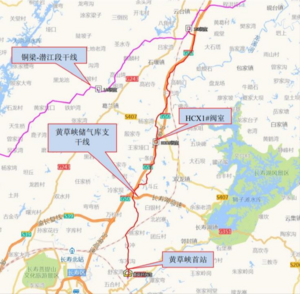

Screenshot 2024-09-18 at 6.48.27 PM.png
  • Operator: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [11]
  • Owner: National Petroleum and National Gas Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司)
  • Parent company:
  • Length: 39.24 km [11]
  • Capacity: 3.1 bcm/year[12]
  • Diameter: 711 mm[11]
  • Status: Proposed[13]
  • Start year:
  • Cost:

Yubei Branch (Dawan-Yubei) 渝北供气支干线

  • Operator: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Owner: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Parent company:
  • Length: 10.77 km [15]
  • Capacity: 0.24 bcm/year[14]
  • Diameter: 219.1 mm[14]
  • Status: Proposed[16]
  • Start year:
  • Cost:

Bishan Branch (Chengjiang-Bishan) 璧山供气支干线

  • Operator: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Owner: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Parent company:
  • Length: 11.4 km [14]
  • Capacity: 0.175 bcm/year[14]
  • Diameter: 219.1 mm[14]
  • Status: Proposed[16]
  • Start year:
  • Cost:

Hechuan Branch (Jiu County-Hechuan) 合川供气支干线

  • Operator: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Owner: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Parent company:
  • Length: 8.6 km [14]
  • Capacity: 0.195 bcm/year[14]
  • Diameter: 219.1 mm[14]
  • Status: Proposed[16]
  • Start year:
  • Cost:

Tongnan Branch (Valve Chamber No.4-Tongnan) 潼南供气支干线

  • Operator: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Owner: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Parent company:
  • Length: 17.72 km [14]
  • Capacity: 0.4 bcm/year[14]
  • Diameter: 219.1 mm[14]
  • Status: Proposed[16]
  • Start year:
  • Cost:

Changshou Branch (Huangcaoxia-Changshou) 长寿供气支干线

  • Operator: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Owner: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Parent company:
  • Length: 14.18 km [14]
  • Capacity: 0.45 bcm/year[14]
  • Diameter: 273 mm[14]
  • Status: Proposed[16]
  • Start year:
  • Cost:

Dianjiang Branch (Valve Chamber No.16-Dianjiang) 垫江供气支干线

  • Operator: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Owner: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Parent company:
  • Length: 5.69 km [14]
  • Capacity: 0.048 bcm/year[14]
  • Diameter: 219.1 mm[14]
  • Status: Proposed[16]
  • Start year:
  • Cost:

Badong Branch( Valve Chamber No.34-Badong) 巴东供气支干线

Loading map...
  • Operator: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Owner: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Parent company:
  • Length: 62.64 km [14]
  • Capacity: 0.02 billion cubic meters[17]
  • Diameter: 291.1 mm[17]
  • Status: Proposed[16][18]
  • Start year:
  • Cost: 273 million RMB[17]

Dazu Branch (Valve Chamber No. 6-Dazu) 大足供气支干线

  • Operator: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Owner: National Pipe Network Group Southwest Pipeline Co., Ltd.(国家管网集团西南管道有限责任公司) [14]
  • Parent company:
  • Length: 11.97 km [14]
  • Capacity: 0.25 bcm/year[14]
  • Diameter: 219.1 mm[14]
  • Status: Proposed[16]
  • Start year:
  • Cost:


Eastern Section (Hubei–Henan–Jiangxi–Anhui–Zhejiang–Fujian) 川气东送二线东段（鄂豫赣皖浙闽段）

The Eastern Section has a total length of 2,698 kilometers, comprising one main trunk line, two connecting lines, and three branch lines. The pipeline has an annual transmission capacity of 14 billion cubic meters. In February 2025, construction of the eastern section commenced.[19]

Xiantao-Wenzhou Trunk Line 鄂豫赣皖浙闽段干线(仙桃-温州)

Loading map...
  • Operator: West to East Gas Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司西气东输分公司) [20][21]
  • Owner: West to East Gas Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司西气东输分公司) [20][21]
  • Parent company:
  • Length: 1260 kilometers[21]
  • Capacity: 13 bcm/year (Xiantao-Xuancheng), 14 bcm/year (xuancheng-Wenzhou)[21]
  • Diameter: 1016mm(Xiantao-Xuancheng), 1219mm(xuancheng-Wenzhou)[22]
  • Status: Construction[23]
  • Start year:
  • Cost: 48.61 billion RMB[21]

Zaoyang–Xuancheng Connecting Pipeline 枣阳-宣城联络线

Loading map...
  • Operator: West to East Gas Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司西气东输分公司) [20][21]
  • Owner: West to East Gas Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司西气东输分公司) [20][21]
  • Parent company:
  • Length: 787.2 km[21]
  • Capacity: 9.53 bcm/year[21]
  • Diameter: 1016 mm[21]
  • Status: Construction[23]

Wuhu Branch (Wuhu–Ma'anshan) 芜湖联络线（芜湖-马鞍山）

  • Operator: West to East Gas Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司西气东输分公司) [20][21]
  • Owner: Operator: West to East Gas Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司西气东输分公司) [20][21]
  • Parent company:
  • Length: 68.2 km[24]
  • Capacity: 0.75 bcm/year[24]
  • Diameter: 508 mm[24]
  • Status: Construction[23]

Wenzhou–Fuding Pipeline 浙闽支干线 (温州-福鼎)

Loading map...
  • Operator: West to East Gas Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司西气东输分公司) [20][21]
  • Owner: West to East Gas Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司西气东输分公司) [20][21]
  • Parent company:
  • Length: 150 km[24]
  • Capacity: 10 bcm/year[24]
  • Diameter: 1016 mm[24]
  • Status: Construction[23]
  • Start year:
  • Cost：

Huainan-Bozhou Branch Line 皖西支干线 (淮南-亳州)

  • Operator: West to East Gas Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司西气东输分公司)[25]
  • Owner: West to East Gas Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司西气东输分公司)[25]
  • Parent company:
  • Length: 208.4 kilometers[25]
  • Capacity: 1.97 bcm/year[25]
  • Diameter: 1016 mm[25]
  • Status: Proposed[25]
  • Start year:
  • Cost:

Anqing–Poyang Branch Line 皖赣支干线 (安庆-鄱阳)

Loading map...
  • Operator: West to East Gas Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司西气东输分公司)[25]
  • Owner: West to East Gas Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd.(国家石油天然气管网集团有限公司西气东输分公司)[25]
  • Parent company:
  • Length: 169.5 kilometers[25]
  • Capacity: 4.31 bcm/year[25]
  • Diameter: 1016 mm[25]
  • Status: Proposed[25]
  • Start year:
  • Cost:
