Ningxia Gas Pipeline Network 宁夏输气管网 is a pipeline network in Ningxia Autonomous Region, China with segments that are proposed and operating.

Location

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"350px","height":"250px","centre":{"text":"","title":"","link":"","lat":39,"lon":107,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":38.456894,"lon":106.110757},{"lat":39.19773484018571,"lon":106.67360395307347}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":38.456894,"lon":106.110757},{"lat":37.830824707527505,"lon":106.18381622808245}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":38.456894,"lon":106.110757},{"lat":37.79567106469245,"lon":107.35866637242964}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":38.456894,"lon":106.110757},{"lat":37.79567106469245,"lon":107.35866637242964}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":38.456894,"lon":106.110757},{"lat":37.830824707527505,"lon":106.18381622808245}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":38.456894,"lon":106.110757},{"lat":39.19773484018571,"lon":106.67360395307347}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":39.83484182505313,"lon":108.7442555064268},{"lat":39.097779175905266,"lon":107.98478595576412},{"lat":39.1920204502797,"lon":107.27305449114313},{"lat":38.996666416572424,"lon":107.29475362116204},{"lat":38.82782367974768,"lon":106.69585763263949},{"lat":38.64502269263255,"lon":106.62208059057512},{"lat":38.55684061715666,"lon":106.36169103034791},{"lat":38.45835591574929,"lon":106.08828199210936}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":5,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

Network background

宁夏回族自治区”十四五“能源发展规划

Ningxia Gas Pipeline Network is a pipeline network comprised of proposed and operating natural gas pipelines in Ningxia Autonomous Region.

Several national gas pipelines, including West-East Gas Pipeline 1, West-East Gas Pipeline 2, West-East Gas Pipeline 3, West-East Gas Pipeline 4 and Zhongwei-Guiyang Connecting Gas Pipeline are going through Ningxia, bringing in sufficient gas sources and covering most of the major cities in the region. A branch of West-East Gas Pipeline 2, Changqing-Yinchuan Gas Pipeline, brings the natural gas from the Changqing gas field to the capital of Ningxia. Zhongwei, Ningxia is a national gas pipeline hub. 20% of gas in the country goes through Zhongwei.

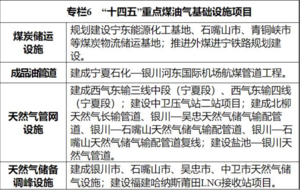

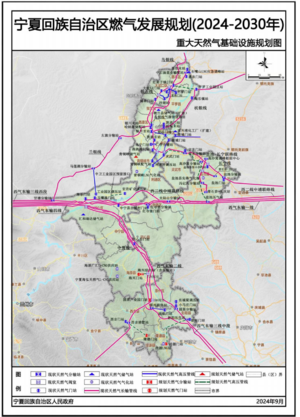

In Ningxia's 14th Five-Year-Plan On Energy Sector, the Region plans its gas pipeline mileage to reach 2500 kilometers by 2025, the natural gas consumption in the Region to increase 66.7%. Several extension pipelines are proposed to reach further in the region.

十三五期间，天然气勘探开发取得重大突破，西气东输中卫压气站互联互通工程、杭锦旗至银川天然气管道相继建成，银川市、石嘴山市、吴忠市、中卫市天然气储气设施开工建设，天然气多渠道供应、多气源互补格局正在形成。

天然气消费量达到29.55亿立方米，较2015年增长47%。

打造“西气东输”输配枢纽。推进西气东输三线中段、西气东输四线等过境天然气管道建设，强化宁夏在西气东输战略通道中的重要节点作用。增加杭锦旗至银川天然气管道输气量，加快推进杭银线三条配套支线、盐池至银川天然气管道建设，促进银川市、石嘴山市、吴忠市天然气互联互通，构建多气源互补、联系畅通、运行灵活、安全可靠的天然气管网。推进天然气管网向海原县、泾源县、隆德县等未覆盖县域延伸。强化储气能力建设，逐步建立以集约化、规模化LNG储罐为主，重点用气企业小型LNG、CNG储配站为辅，沿海LNG接收站为补充，管网互联互通为支撑的多层次储气系统，城镇燃气企业形成不低于其年用气量5%的储气能力，县级以上人民政府形成不低于保障本行政区域日均3天用气量的储气能力。到2025年，全区天然气长输管道长度达到2500公里，天然气供气量达到50亿立方米，建成管线交汇、外通内畅、调配灵活的“西气东输”输配枢纽。

Network details

Hangjinqi-Yinchuan Gas Pipeline 杭银输气管线（杭锦旗-银川）

There are two segments of the pipeline. The first segment is the Hangjing-Otog segment(杭锦旗至鄂托克旗) 191km, and the second segment is the Ningxia Shizuishan-Yinchuan segment(石嘴山平罗至银川) 91km.

The pipeline runs from Changqing Oil and Gas Field (Ordos Dongsheng Gas Field) to Hanggin, Ordos, Inner Mongolia and Yinchuan, Ningxia.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":39,"lon":107,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":39.83484182505313,"lon":108.7442555064268},{"lat":39.097779175905266,"lon":107.98478595576412},{"lat":39.1920204502797,"lon":107.27305449114313},{"lat":38.996666416572424,"lon":107.29475362116204},{"lat":38.82782367974768,"lon":106.69585763263949},{"lat":38.64502269263255,"lon":106.62208059057512},{"lat":38.55684061715666,"lon":106.36169103034791},{"lat":38.45835591574929,"lon":106.08828199210936}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":6,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

• Operating Company:
• Parent Company: Ningxia Hanas Gas Group 宁夏哈纳斯燃气集团
• Current Capacity: 2.5 bcm/year
• Length: 282 kilometers / 175.2 miles
• Status: Operating
• Start Year: 2019
• Cost: 1.5 billion RMB

Yinchuan-Shizuishan parallel gas pipeline 银川-石嘴山输气管道复线

The pipeline runs from Yinchuan, Ningxia, to Shizuishan, Ningxia.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":38.83515208846007,"lon":106.25428953815364,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":38.456894,"lon":106.110757},{"lat":39.19773484018571,"lon":106.67360395307347}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

• Owner: Yinshi (Helan County) Natural Gas Co., Ltd. 银石（贺兰县）天然气有限公司
• Parent Company: Ningxia Hanas Gas Group 宁夏哈纳斯燃气集团
• Capacity: 1.6 bcm/year
• Length: 83 kilometers
• Status: Construction
• Start Year:
• Cost: 489.71 million RMB

Yinchuan-Wuzhong gas pipeline 银川-吴忠输气管道

The pipeline runs from Yinchuan, Ningxia, to Wuzhong, Ningxia.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":38.13515208846007,"lon":106.14,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":38.456894,"lon":106.110757},{"lat":37.830824707527505,"lon":106.18381622808245}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

银川 - 吴 忠 天 然 气 储 气 输 配 管 道 项 目 （ 项 目 代 码 ： 2018-640000-44-02-006778）起自银川环城高压 1 号站，止于拟建吴忠门站，管线自银川市金凤区至吴忠市利通区，途经银川市 永宁县、灵武市、吴忠市利通区，主要为灵武市、吴忠市城乡天 然气用户供气。本项目主要建设内容包括 1 条 55 公里长输气管线，2 座场站（分输门站 1 座位于灵武、门站 1 座位于吴忠）、 截断阀井 3 个（1#截断阀井位于永宁县快速通道与望银路交叉口 北侧，2#截断阀井位于永宁县沈家湾，3#截断阀井位于永宁县杨 家寨）。本项目总投资估算为 53847.04  万元，其中环保投资1414.09 万元，约占总投资的 2.63%。

• Owner: Yinwu (Yongning County) Natural Gas Co., Ltd. 银吴（永宁县）天然气有限公司
• Parent Company: Ningxia Hanas Gas Group 宁夏哈纳斯燃气集团
• Capacity: bcm/year
• Length: 55 kilometers
• Status: proposed
• Start Year:
• Cost: 538.47 million RMB

Yanchi-Yinchuan gas pipeline 盐池-银川输气管道

The pipeline runs from Yanchi, Ningxia, to Yinchuan, Ningxia. The project is listed into Ningxia 14th Five-Year-Plan on Energy Sector (2021-2025). But no details are available.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":38.13515208846007,"lon":106.75428953815364,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":38.456894,"lon":106.110757},{"lat":37.79567106469245,"lon":107.35866637242964}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

• Owner:
• Parent Company:
• Capacity: bcm/year
• Length: kilometers
• Status: proposed
• Start Year:
• Cost:

Wuhai-Yinchuan Gas Pipeline 乌海-银川输气管道

The pipeline is China's first long-distance high-hydrogen content coke oven gas transmission pipeline. Its operation not only realizes the recycling and utilization of coke oven tail gas from various coking plants in Qianlishan and Xilaifeng Industrial Parks in Wuhai City, Inner Mongolia, and reduces waste gas emissions, but also sets a precedent for the recycling and utilization of coke oven gas in China. The pipeline starts from Qianlishan Industrial Park in Wuhai City, Inner Mongolia, and ends in Yinchuan City, Ningxia.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":39.13515208846007,"lon":106.55428953815364,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":39.809949,"lon":106.841246},{"lat":39.422867,"lon":106.827626},{"lat":39.013312,"lon":106.307062},{"lat":38.426095,"lon":106.106497}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":6,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

• Owner: PetroChina Pipeline Company Changqing Oil and Gas Transmission Branchs
• Parent Company:
• Capacity:1.61 bcm/year
• Length: 216.4 kilometers
• Status: Operating
• Start Year:2012
• Cost: 541.6002 million RMB

Qingshimao Gas Field Qinggao Gas Pipeline 青石峁气田青高外输管道

This pipeline is the first trunk transmission pipeline of the Qingshimao gas field in Ningxia, laying a more solid foundation for the large-scale development, efficient utilization and "gasification of Ningxia" of the Qingshimao gas field.The pipeline starts from Wangshitan Village, Qingshan Township, Yanchi County, passes through Shuanghezhuang Village, Ya'ergou Village, and Sunjialou Village in Wanglejing Township, Yanchi County, and ends at Gaoshawo Village, Gaoshawo Town, Yanchi County.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":37.650731,"lon":107.039759,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":37.550731,"lon":107.004035},{"lat":37.451532,"lon":107.04756},{"lat":37.821609,"lon":106.962462},{"lat":37.862038,"lon":107.058761}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":8,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

• Owner: Ningxia Xinyan Energy Technology Co Ltd
• Parent Company:
• Capacity: 1 bcm/year
• Length: 65 kilometers
• Status: Operating
• Start Year:2024
• Cost:356 million RMB
