Anhui Gas Pipeline Network

From Global Energy Monitor
This article is part of the Global Fossil Infrastructure Tracker, a project of Global Energy Monitor.
Sub-articles:

Anhui Gas Pipeline Network 安徽输气管网 is a pipeline network with gas pipelines that are operating, in-construction, and proposed in Anhui Province, China.[1][2][3]

Location

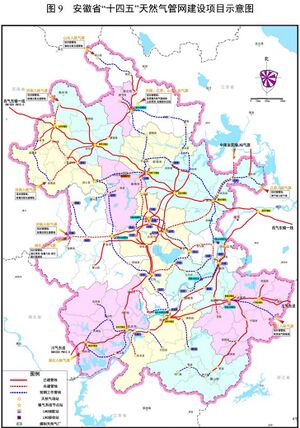

Schematic diagram of Anhui Province's 14th Five-Year Plan, including existing pipelines in operation.

The network consists of pipelines throughout Anhui Province, China.[3]

Loading map...


Note the map above shows only the pipelines listed below, though the Anhui Province pipeline map included as a thumbnail shows a fuller picture of all currently operating, proposed, and in-development pipelines in the region.

Background

In May 2017, Anhui Province released the Anhui Oil & Gas Pipeline Network Infrastructure Development Plan (2017–2021) 安徽省油气管网基础设施建设规划 (2017—2021年).

This document sketches out a gas pipeline network consisting of three major "backbone" pipelines running north to south, four additional "connection" pipelines running east to west, and a loop. From 2017 to 2021, Anhui Province expects to complete 1630 kilometers of gas pipeline in this network, with a total investment of 7 billion RMB (roughly US$1.1 billion), divided into segments completed year-by-year.[1][2] The plan also documented a need to upgrade the Fuyang–Suzhou Gas Transmission Line.

In February 2021, The People's Congress of Anhui Province approved the 14th National Economic and Social Development Five-Year Plan (14th Five-Year Plan) and the 2035 Vision Outline of Anhui Province (安徽省国民经济和社会发展第十四个 五年规划和 2035 年远景目标纲要). In the natural gas infrastructure section, continuing and new construction proposals for the provincial gas pipeline network include Bengbu–Hefei, Chaohu–Jiangbei District, Yingshang–Jin'an, Lujiang–Guichi, and Suzhou–Bengbu gas pipelines. The plan also detailed continuing construction of trans-province gas pipeline projects, including the Binhai LNG Transport Pipeline as well as the Huzhou–Xuancheng and Yangzhou–Chuzhou pipelines.[3]

Sinopec (China Petroleum & Chemical Corporation) is planning a trans-province pipeline network, the Shandong–Jiangsu–Henan–Anhui Four Provinces Pipeline Network (鲁苏豫皖四省管网), to further the reach of natural gas through the Sichuan–Shanghai Gas Pipeline and the Jiangsu LNG Terminal and Yancheng LNG Terminal.

Network details

This network is split into three main vertical lines (or backbones) running north–south in the eastern, middle, and western part of Anhui Province. Four additional major segments connecting these lines are also part of the network.

Eastern North–South Backbone Gas Pipeline (Huaibei–Chuzhou) 输气主干网东纵线 (淮北—滁州)[1]

  • Operator:
  • Parent company:
  • Capacity:
  • Length: 300 km[1]
  • Diameter:
  • Status: Proposed
  • Start year:
  • Cost:

It starts at Lieshan, passing through Zhuixi, Yongqiao, Lingbi, Si County, Wuhe, Mingguang and ends up at Lai'an. [1]

The Northeast Anhui Natural Gas Pipeline Phases I and II, two segments of the Eastern North–South Backbone Gas Pipeline (Huaibei–Chuzhou), have been proposed.[4] Together, their cost is estimated to be 2.498 billion RMB.[5]

Loading map...

Northeast Anhui Natural Gas Pipeline Phase I (Tianchang–Fengyang) 皖东北天然气管道一期 (天长—凤阳)

In March 2021, the Phase I segment received environmental access clearance.[6][7]

  • Operator: Sinopec Wenergy Natural Gas Co., Ltd. 中石化皖能天然气有限公司 [8]
  • Parent company: Sinopec 50%, Wenegy 50%[8]
  • Capacity: 4.66 billion tonnes per year[6]
  • Length: 188 km[6]
  • Diameter: 1016mm/D711mm[6]
  • Status: Proposed[6]
  • Start year:
  • Cost: 1.76 billion RMB[6]
Loading map...

Northeast Anhui Natural Gas Pipeline Phase II (Chuzhou–Ma'anshan) 皖东北天然气管道二期 (滁州—马鞍山)

In July 2021, an extension of the backbone pipeline received a permit for construction, described below.[9]

  • Operator: Sinopec Wenergy Natural Gas Co., Ltd. 中石化皖能天然气有限公司 [8]
  • Parent company: Sinopec 50%, Wenegy 50%[8]
  • Capacity: 4.66 billion tonnes per year [5]
  • Length: 179 km[5]
  • Diameter: DN711mm[5]
  • Status: Proposed[5][9]
  • Start year:
  • Cost: 1.54 billion RMB[9]
Loading map...

Middle North–South Backbone Gas Pipeline (Suzhou–Huangshan) 主干网中纵线 (宿州—黄山)[1]

  • Operator:
  • Parent company:
  • Capacity:
  • Length: 700 km [1]
  • Diameter:
  • Status: Proposed
  • Start year:
  • Cost:
Loading map...

Xuancheng–Huangshan Gas Pipeline 宣黄线 (宣城–黄山)

Construction began for a segment of this pipeline from Xuancheng to Huangshan (details below) began in 2014.[10] It has since been completed and went into operation in 2021; its source is the Sichuan–Shanghai Gas Pipeline.

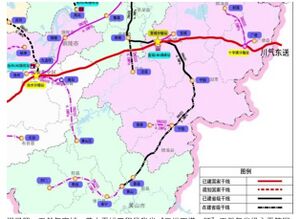

Schematic of Xuancheng–Huangshan Gas Pipeline in black.
  • Operator: Anhui Province Natural Gas Development Co., Ltd.[11][10]
  • Parent company: Anhui Province Natural Gas Development Co., Ltd.[10]
  • Capacity: 0.822 billion cubic meters per year[10]
  • Length: 210.5 kilometers[10]
  • Diameter:
  • Status: Operating[10]
  • Start year: 2021[10][12]
  • Cost: 1 billion RMB[13]
Loading map...

Suzhou–Huaibei–Xiao County–Dangshan Gas Pipeline 宿州-淮北-萧县-砀山输气管线

In August 2021, the segment of the pipeline connecting Suzhou, Huaibei, Xiao County, and Dangshan (described below) received a permit for construction.[14]

  • Operator: Anhui Province Natural Gas Development Co., Ltd.[11]
  • Parent company: Anhui Province Natural Gas Development Co., Ltd.[11]
  • Capacity:
  • Length: 180 kilometers[10][13]
  • Diameter: 700mm[13]
  • Status: Proposed[14]
  • Start year:
  • Cost: 1.1 billion RMB[13]
Loading map...

Chaohu–Jiangbei District Gas Pipeline 巢湖—江北集中区输气管线[15]

In July 2020, the segment of the pipeline connecting Chaohu and Jiangbei District entered construction.[16]

  • Operator: Huainan Mining (Group) Co., Ltd.Huaihe Energy Holding Group Clean Energy Co., Ltd.[17]
  • Parent company: Huaihe Energy Holding Group 淮河能源控股集团[18]
  • Capacity:
  • Length: 79 km[16]
  • Diameter: 610mm[16]
  • Status: Construction[16]
  • Start year:
  • Cost:
Loading map...

Two additional segments were proposed for construction in the 14th Five-Year Plan (2021-2025), including the Bengbu–Hefei Gas Pipeline and the Suzhou–Bengbu Gas Pipeline.[3]

Bengbu–Hefei Gas Pipeline 蚌埠—合肥输气管线

The Bengbu–Hefei Gas Pipeline received a permit for construction in June 2021.[19]

  • Operator: Huainan Mining (Group) Co., Ltd.Huaihe Energy Holding Group Clean Energy Co., Ltd.[17]
  • Parent company: Huaihe Energy Holding Group 淮河能源控股集团[18]
  • Capacity:
  • Length: 100 km[19]
  • Diameter:
  • Status: Proposed[19]
  • Start year:
  • Cost:
Loading map...

Suzhou–Bengbu Gas Pipeline 宿州—蚌埠输气管线

Operator:

  • Parent company:
  • Capacity:
  • Length:
  • Diameter:
  • Status: Proposed[20]
  • Start year:
  • Cost:
Loading map...

Western North–South Backbone Gas Pipeline (Bozhou–Chizhou) 输气主干网西纵线 (亳州—池州)

  • Operator:
  • Parent company:
  • Capacity:
  • Length: 500 km[1]
  • Diameter:
  • Status: Proposed
  • Start year:
  • Cost:

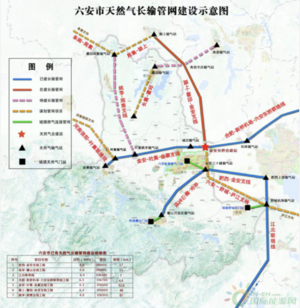

As of August 2021, the segment of this pipeline connecting Lu'An, Huoqiu, and Yingshang was ready to enter construction, but it was on temporary hold.[21] The source of the Lu'an–Huoqiu–Yingshang Gas Pipeline will be the Sichuan–Shanghai Gas Pipeline.

Loading map...

Lu'an–Huoqiu–Yingshang Gas Transmission Trunkline 六安—霍邱—颍上输气干线[22]

  • Operator: Anhui Province Natural Gas Development Co., Ltd.[23]
  • Parent company: Anhui Province Natural Gas Development Co., Ltd.[23]
  • Capacity: 0.5 billion cubic meters per year[22]
  • Length: 136 kilometers[10]
  • Diameter: 610 millimeters[23]
  • Status: Construction[23]
  • Start year:
  • Cost: 790 million RMB[22]
Loading map...


Two segments below have been proposed for construction during the 14th Five-Year Plan (2021–2025).[3]

Lujiang–Guichi Gas Pipeline 庐江—贵池输气管线

  • Operator:
  • Parent company:
  • Capacity:
  • Length: 160 km[1]
  • Diameter:
  • Status: Proposed
  • Start year:
  • Cost:
Loading map...

Connecting pipeline segments

Lujiang–Wuwei Gas Transmission Line 庐江—无为输气联络线

  • Operator:
  • Parent company:
  • Capacity:
  • Length: 160 km[1]
  • Diameter:
  • Status: Proposed
  • Start year:
  • Cost:
Loading map...

Fuyang–Suzhou Gas Transmission Line 阜阳—宿州输气联络线

  • Operator:
  • Parent company:
  • Capacity:
  • Length: 120 km[1]
  • Diameter:
  • Status: Proposed
  • Start year:
  • Cost:
Loading map...

Yingshang–Bengbu Gas Transmission Line 颍上—蚌埠输气联络线

  • Operator: Huainan Mining (Group) Co., Ltd.Huaihe Energy Holding Group Clean Energy Co., Ltd.[17]
  • Parent company: Huaihe Energy Holding Group 淮河能源控股集团[18]
  • Capacity:
  • Length: 122 km[24]
  • Diameter: 600mm
  • Status: Proposed[24]
  • Start year:
  • Cost:
Loading map...

Changfeng-Jinzhai Gas Transmission Line 长丰—金寨输气联络线

  • Operator:
  • Parent company:
  • Capacity:
  • Length: 120 km[1]
  • Diameter:
  • Status: Proposed
  • Start year:
  • Cost:
Loading map...

Huzhou–Xuancheng Gas Pipeline 湖州—宣城输气管线

  • Operator:
  • Parent company:
  • Capacity:
  • Length:
  • Diameter:
  • Status: Proposed
  • Start year:
  • Cost:
Loading map...

Yangzhou–Chuzhou Gas Pipeline 扬州—滁州输气管线

  • Operator:
  • Parent company:
  • Capacity:
  • Length:
  • Diameter:
  • Status: Proposed
  • Start year:
  • Cost:
Loading map...

Yaoli-Zhouji Gas Pipeline 姚李至周集高压管线工程 (含霍邱县城支线)

The pipeline is proposed to run from the natural gas Jin’an-Yeji-Jinzhai connection line project Yaoli gas transmission station to the terminal station of Wangjieliu Township in Huoqiu County.[25]

  • Operator:
  • Parent company:
  • Capacity:
  • Length: 87 kilometeres[25][20]
  • Diameter: 400 millimeters[25]
  • Status: Proposed[25]
  • Start year:
  • Cost:
Loading map...
