This article is part of the Global Fossil Infrastructure Tracker, a project of Global Energy Monitor.
|
Sub-articles:
|
|

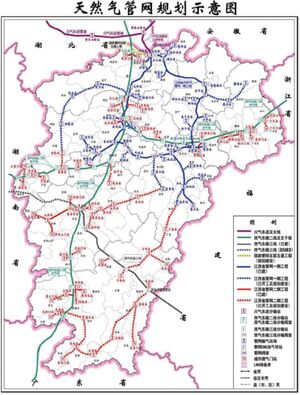

Jiangxi Natural Gas Pipeline Network 江西省天然气管网 is a pipeline network with segments that are proposed, in-construction, and operating in Jiangxi Province, China.
Location
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":27.061523,"lon":115.686347,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":29.6788495,"lon":116.0545719},{"lat":29.6329562,"lon":116.0219874},{"lat":29.5937572,"lon":115.9827884},{"lat":29.5745577,"lon":115.9563891},{"lat":29.5721577,"lon":115.9243899},{"lat":29.5729577,"lon":115.9123902}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":29.0464586,"lon":117.0474963},{"lat":29.033569,"lon":117.0893878},{"lat":29.0160758,"lon":117.1331206},{"lat":29.0008844,"lon":117.1708689},{"lat":28.9852327,"lon":117.2122999},{"lat":28.9718827,"lon":117.2482069},{"lat":28.9635965,"lon":117.3025276},{"lat":28.9599137,"lon":117.3365932},{"lat":28.9553103,"lon":117.3812467},{"lat":28.9543896,"lon":117.4212967},{"lat":28.9493258,"lon":117.4691726},{"lat":28.9507068,"lon":117.5336209},{"lat":28.9737241,"lon":117.5672261},{"lat":28.9935189,"lon":117.59899},{"lat":29.0160758,"lon":117.6358176},{"lat":29.0409345,"lon":117.6602159},{"lat":29.0745397,"lon":117.688297},{"lat":29.1063035,"lon":117.716378},{"lat":29.1343846,"lon":117.7366332},{"lat":29.1624656,"lon":117.7633332},{"lat":29.2218502,"lon":117.7927953}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":28.6451467,"lon":115.5007151},{"lat":28.6029805,"lon":115.5194061},{"lat":28.5706225,"lon":115.5417485},{"lat":28.5451985,"lon":115.5486823},{"lat":28.5313308,"lon":115.551764},{"lat":28.4958912,"lon":115.5502232},{"lat":28.4743192,"lon":115.5355851},{"lat":28.4542881,"lon":115.5063089},{"lat":28.4180781,"lon":115.4716397},{"lat":28.392654,"lon":115.4492973},{"lat":28.3618369,"lon":115.4277253},{"lat":28.3356424,"lon":115.4046125},{"lat":28.3210043,"lon":115.3953674},{"lat":28.3048254,"lon":115.3915153},{"lat":28.2924985,"lon":115.3922857},{"lat":28.2832534,"lon":115.3930561},{"lat":28.2786309,"lon":115.3953674},{"lat":28.275492,"lon":115.3959828},{"lat":28.270057,"lon":115.3984553},{"lat":28.2687755,"lon":115.3994317},{"lat":28.2624389,"lon":115.4192525},{"lat":28.2615435,"lon":115.4470085},{"lat":28.2615435,"lon":115.483718},{"lat":28.2579621,"lon":115.5123694},{"lat":28.2516946,"lon":115.5302765},{"lat":28.2382643,"lon":115.5732535},{"lat":28.2311015,"lon":115.5956374},{"lat":28.2060315,"lon":115.6180213},{"lat":28.1809616,"lon":115.6395098},{"lat":28.1603684,"lon":115.6583122},{"lat":28.1281357,"lon":115.6798008},{"lat":28.0967982,"lon":115.6968125},{"lat":28.0842633,"lon":115.7084521},{"lat":28.0636578,"lon":115.730867},{"lat":28.0533551,"lon":115.7485288},{"lat":28.0467319,"lon":115.7801729},{"lat":28.0445242,"lon":115.8140247},{"lat":28.0445242,"lon":115.8243274}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":28.2052488,"lon":114.9038971},{"lat":28.1948721,"lon":114.9296987},{"lat":28.1850562,"lon":114.9563417},{"lat":28.1629005,"lon":114.9855088},{"lat":28.1471951,"lon":115.0051405},{"lat":28.1340138,"lon":115.0516956}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":29.1675418,"lon":115.6873268},{"lat":29.1454497,"lon":115.6797552},{"lat":29.1033619,"lon":115.6639157},{"lat":29.0970261,"lon":115.6613512},{"lat":29.0946124,"lon":115.6604461},{"lat":29.0882766,"lon":115.6581833},{"lat":29.0608215,"lon":115.6485287},{"lat":29.0537314,"lon":115.6459642},{"lat":29.0429619,"lon":115.6419008},{"lat":29.075446,"lon":115.577067},{"lat":29.100121,"lon":115.5444833},{"lat":29.122898,"lon":115.5125323},{"lat":29.1317557,"lon":115.4704582},{"lat":29.1448878,"lon":115.4301624},{"lat":29.1538942,"lon":115.3879017},{"lat":29.1656717,"lon":115.3449482},{"lat":29.1767565,"lon":115.3054586},{"lat":29.1906125,"lon":115.2666619},{"lat":29.1933837,"lon":115.2230155},{"lat":29.1954621,"lon":115.1779836},{"lat":29.2016973,"lon":115.1378012},{"lat":29.2086253,"lon":115.0796061},{"lat":29.1885341,"lon":115.031803},{"lat":29.1725997,"lon":115.0137902},{"lat":29.1448878,"lon":114.9846926},{"lat":29.1365024,"lon":114.9481207},{"lat":29.1226464,"lon":114.9044743},{"lat":29.1115616,"lon":114.8670632},{"lat":29.0942416,"lon":114.8254952},{"lat":29.0734576,"lon":114.7901625},{"lat":29.0547521,"lon":114.7520585},{"lat":29.0395105,"lon":114.722961},{"lat":29.0221905,"lon":114.6758506},{"lat":29.0104129,"lon":114.6488315},{"lat":28.9979425,"lon":114.6169627},{"lat":28.9556818,"lon":114.574702},{"lat":28.930741,"lon":114.5525324},{"lat":28.9044147,"lon":114.5303628},{"lat":28.8670035,"lon":114.5033437},{"lat":28.8413699,"lon":114.4784029},{"lat":28.7921812,"lon":114.4652397},{"lat":28.7644692,"lon":114.4624685},{"lat":28.7300029,"lon":114.4520266},{"lat":28.6885488,"lon":114.4387021},{"lat":28.653757,"lon":114.4342606},{"lat":28.6145237,"lon":114.4275983},{"lat":28.5582647,"lon":114.4253776},{"lat":28.5091301,"lon":114.4187515},{"lat":28.4761918,"lon":114.4162178},{"lat":28.4407198,"lon":114.4206518},{"lat":28.4020806,"lon":114.4193849},{"lat":28.3596408,"lon":114.4231855},{"lat":28.3292362,"lon":114.4326869},{"lat":28.2886967,"lon":114.4339538},{"lat":28.2494241,"lon":114.4358541},{"lat":28.2126852,"lon":114.4396547},{"lat":28.1765797,"lon":114.4402881},{"lat":28.1404742,"lon":114.4434552},{"lat":28.0789782,"lon":114.4483325},{"lat":28.0413983,"lon":114.4460777},{"lat":28.0083281,"lon":114.4483325},{"lat":27.961729,"lon":114.4490841},{"lat":27.9294104,"lon":114.4513388},{"lat":27.8895757,"lon":114.4445745},{"lat":27.8444799,"lon":114.4430713}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":26.229617,"lon":115.625196},{"lat":26.2492327,"lon":115.6767781},{"lat":26.2586773,"lon":115.7290867},{"lat":26.272481,"lon":115.7632327},{"lat":26.2782931,"lon":115.8039171},{"lat":26.2855581,"lon":115.8467812},{"lat":26.3015413,"lon":115.8729355},{"lat":26.3247896,"lon":115.8969103},{"lat":26.3545765,"lon":115.9245176},{"lat":26.3792778,"lon":115.9528515},{"lat":26.4076116,"lon":115.9739202},{"lat":26.436672,"lon":116.0015275},{"lat":26.4889806,"lon":116.0465711},{"lat":26.518041,"lon":116.0894351},{"lat":26.5340241,"lon":116.125034},{"lat":26.5500073,"lon":116.163539},{"lat":26.5696231,"lon":116.2042235},{"lat":26.5870593,"lon":116.2289248},{"lat":26.6273577,"lon":116.2545767},{"lat":26.6619007,"lon":116.2624274},{"lat":26.6948735,"lon":116.2734183},{"lat":26.7309866,"lon":116.2875496},{"lat":26.7686699,"lon":116.3001106},{"lat":26.8000726,"lon":116.3142419},{"lat":26.8691585,"lon":116.3362237},{"lat":26.9087668,"lon":116.3446327},{"lat":26.9545624,"lon":116.3564087},{"lat":26.9728806,"lon":116.3642594},{"lat":27.0226015,"lon":116.3747269},{"lat":27.0644718,"lon":116.3917367},{"lat":27.1063421,"lon":116.4231394},{"lat":27.1377448,"lon":116.4493083},{"lat":27.1639137,"lon":116.4676266},{"lat":27.1979333,"lon":116.4898702},{"lat":27.2384951,"lon":116.5055715},{"lat":27.2895245,"lon":116.5278151}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":28.0444519,"lon":115.8243916},{"lat":28.0364557,"lon":115.8738958},{"lat":28.0257731,"lon":115.9196788},{"lat":28.0234839,"lon":115.9486746},{"lat":28.0189056,"lon":115.9646986},{"lat":28.0288252,"lon":116.0112446},{"lat":28.0395079,"lon":116.0822081},{"lat":28.0471384,"lon":116.1203606},{"lat":28.0494276,"lon":116.1829306},{"lat":28.0692668,"lon":116.2264243},{"lat":28.0707929,"lon":116.2821269},{"lat":28.0830017,"lon":116.361484},{"lat":28.0891061,"lon":116.4156604},{"lat":28.0905164,"lon":116.4347868}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":25.4308933,"lon":114.8804526},{"lat":25.355891,"lon":114.8927948},{"lat":25.3150669,"lon":114.9022887},{"lat":25.2761417,"lon":114.9127321},{"lat":25.2429128,"lon":114.9117827},{"lat":25.2058864,"lon":114.9165297},{"lat":25.1669611,"lon":114.9184285},{"lat":25.1242383,"lon":114.9174791},{"lat":25.0882065,"lon":114.9018247},{"lat":25.0560178,"lon":114.8713301},{"lat":25.0306056,"lon":114.8493062},{"lat":24.9984168,"lon":114.8154233},{"lat":24.9594515,"lon":114.7629048},{"lat":24.918792,"lon":114.7815404},{"lat":24.8967681,"lon":114.8188116},{"lat":24.8798267,"lon":114.8442238},{"lat":24.859497,"lon":114.8798008},{"lat":24.8459438,"lon":114.9306251},{"lat":24.8391672,"lon":114.9746729},{"lat":24.8374731,"lon":114.9966968},{"lat":24.8374731,"lon":115.0644626},{"lat":24.8527204,"lon":115.1271459},{"lat":24.8866033,"lon":115.1474757},{"lat":24.918792,"lon":115.1711937},{"lat":24.9492866,"lon":115.1932176},{"lat":24.9713105,"lon":115.2067707},{"lat":25.000111,"lon":115.2423478},{"lat":25.0153583,"lon":115.2745365},{"lat":25.0322997,"lon":115.315196},{"lat":25.0560178,"lon":115.3406082},{"lat":25.0712651,"lon":115.3727969},{"lat":25.0882065,"lon":115.3931267},{"lat":25.1153128,"lon":115.396515},{"lat":25.1779962,"lon":115.4066798},{"lat":25.2237381,"lon":115.4100681},{"lat":25.2728683,"lon":115.4253154},{"lat":25.3186102,"lon":115.4422569},{"lat":25.374517,"lon":115.4659749},{"lat":25.3999291,"lon":115.5083285},{"lat":25.4253413,"lon":115.5472938},{"lat":25.4507535,"lon":115.5981182},{"lat":25.4863305,"lon":115.6591074},{"lat":25.5134368,"lon":115.6794371},{"lat":25.5591788,"lon":115.7302615},{"lat":25.5913675,"lon":115.7522854},{"lat":25.5981441,"lon":115.7658385},{"lat":25.6608274,"lon":115.8098863},{"lat":25.7235108,"lon":115.842075},{"lat":25.7573937,"lon":115.8810404},{"lat":25.7777234,"lon":115.9030642},{"lat":25.796359,"lon":115.9403354},{"lat":25.8200771,"lon":115.9877715},{"lat":25.8844546,"lon":116.0369017}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":25.435528,"lon":114.3029506},{"lat":25.4656809,"lon":114.3447007},{"lat":25.4896485,"lon":114.3779462},{"lat":25.5058847,"lon":114.433613},{"lat":25.5143894,"lon":114.4815483},{"lat":25.5167088,"lon":114.5178864},{"lat":25.5244403,"lon":114.5573171},{"lat":25.4973801,"lon":114.6222617},{"lat":25.4881022,"lon":114.6578267},{"lat":25.4780513,"lon":114.7011231},{"lat":25.4734124,"lon":114.7351417},{"lat":25.4594957,"lon":114.7823039},{"lat":25.4486716,"lon":114.8124568},{"lat":25.4308705,"lon":114.880485}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":25.6550053,"lon":115.8058231},{"lat":25.6200078,"lon":115.8120622},{"lat":25.5864845,"lon":115.8046126},{"lat":25.5461323,"lon":115.7965422},{"lat":25.5138505,"lon":115.7928173},{"lat":25.4766023,"lon":115.7847469},{"lat":25.4343877,"lon":115.7804013},{"lat":25.4014852,"lon":115.7748141},{"lat":25.3660705,"lon":115.7665284},{"lat":25.3272312,"lon":115.7632369},{"lat":25.2877337,"lon":115.7619204},{"lat":25.250211,"lon":115.7579706},{"lat":25.2126883,"lon":115.7553374},{"lat":25.1777987,"lon":115.756654},{"lat":25.1363263,"lon":115.7619204},{"lat":25.1020951,"lon":115.767845},{"lat":25.0658889,"lon":115.7744279},{"lat":25.0225078,"lon":115.7888085}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":24.9594111,"lon":114.7629383},{"lat":24.9189507,"lon":114.7250261},{"lat":24.8904094,"lon":114.6969173},{"lat":24.8709495,"lon":114.6679436},{"lat":24.8540842,"lon":114.6368077},{"lat":24.8311647,"lon":114.60005},{"lat":24.8069478,"lon":114.5736709},{"lat":24.767163,"lon":114.5330212}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":28.270806,"lon":115.3980799},{"lat":28.2227335,"lon":115.3460692},{"lat":28.1685353,"lon":115.252226},{"lat":28.1454509,"lon":115.2080644},{"lat":28.1063077,"lon":115.1448332},{"lat":28.0633189,"lon":115.0826995},{"lat":28.0428273,"lon":115.049662},{"lat":28.0202447,"lon":115.0249884},{"lat":27.9855344,"lon":115.0074242},{"lat":27.9562606,"lon":114.9898599},{"lat":27.935769,"lon":114.9735503}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":27.1022496,"lon":115.0109749},{"lat":27.119172,"lon":115.0514006},{"lat":27.1379746,"lon":115.0824249},{"lat":27.157404,"lon":115.1215971},{"lat":27.1768334,"lon":115.1610826},{"lat":27.1743264,"lon":115.2090293},{"lat":27.1862347,"lon":115.2435008},{"lat":27.212245,"lon":115.2773456},{"lat":27.2316744,"lon":115.3105635},{"lat":27.2529841,"lon":115.3494223},{"lat":27.2687835,"lon":115.3977161},{"lat":27.2653069,"lon":115.4376978},{"lat":27.2783444,"lon":115.4776794},{"lat":27.2861669,"lon":115.5193994},{"lat":27.3148494,"lon":115.6045777},{"lat":27.3374477,"lon":115.6767186},{"lat":27.3530927,"lon":115.7392985},{"lat":27.3635227,"lon":115.7740652},{"lat":27.3878593,"lon":115.8227385},{"lat":27.4139343,"lon":115.9070477},{"lat":27.4321868,"lon":115.9878802},{"lat":27.4469627,"lon":116.0278618},{"lat":27.4608693,"lon":116.0669743},{"lat":27.4782527,"lon":116.1026101},{"lat":27.4912902,"lon":116.1512835},{"lat":27.4982435,"lon":116.1843118},{"lat":27.5156268,"lon":116.2277701},{"lat":27.5230896,"lon":116.2844707}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":29.6788509,"lon":116.0545736},{"lat":29.6738294,"lon":116.1717418},{"lat":29.6386789,"lon":116.258781},{"lat":29.5516397,"lon":116.2855623},{"lat":29.4227547,"lon":116.3407988},{"lat":29.3859304,"lon":116.3859922},{"lat":29.35078,"lon":116.4864221},{"lat":29.330694,"lon":116.5650921},{"lat":29.3173033,"lon":116.6437622},{"lat":29.3055865,"lon":116.7241061},{"lat":29.3055865,"lon":116.8228622},{"lat":29.2838267,"lon":116.8881416},{"lat":29.2536978,"lon":116.9249659},{"lat":29.2336118,"lon":116.9802023},{"lat":29.2252426,"lon":117.0019621},{"lat":29.211852,"lon":117.0287434}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":29.6788497,"lon":116.0545924},{"lat":29.5019079,"lon":116.0436908},{"lat":29.4597327,"lon":116.0046986},{"lat":29.4263109,"lon":115.9601362},{"lat":29.3857272,"lon":115.9036373},{"lat":29.346735,"lon":115.8988628},{"lat":29.3164962,"lon":115.8614621},{"lat":29.2910319,"lon":115.8511173},{"lat":29.2679549,"lon":115.7898438},{"lat":29.2440822,"lon":115.7222044},{"lat":29.2218009,"lon":115.6991274},{"lat":29.201907,"lon":115.6991274},{"lat":29.1411529,"lon":115.6781427},{"lat":29.0816164,"lon":115.6555599},{"lat":29.0159209,"lon":115.6329771},{"lat":28.9204571,"lon":115.6196327},{"lat":28.8732385,"lon":115.6062883},{"lat":28.8362848,"lon":115.6165532},{"lat":28.7859867,"lon":115.5929439},{"lat":28.6452232,"lon":115.500658}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":27.149344,"lon":115.001444},{"lat":27.020345,"lon":114.892871},{"lat":26.961531,"lon":114.243009},{"lat":26.744513,"lon":114.267105}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":5,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
Background
In 2010, Sichuan-Shanghai Gas Pipeline Jiangxi Branch began operating, bringing the natural gas into the province through pipeline for the first time in the history.[1] By the end of 2020, the total gas pipeine mileage in Jiangxi reached 2657 kilometers, including both the segments of the national level trunk lines in the province and the provincial pipeline network.[2]
According to the provincial 14th Five-Year-Plan on Energy Sector, the province plans to reach 5000 kilometers of gas pipeline mileage by 2025, including 1500 kilometers of national network and 3400 kilometers of provincial network. [2]
Sichuan–Shanghai Gas Pipeline, West-East Gas Pipeline 2, West-East Gas Pipeline 3 and ongoing Xinjiang Coal-to-Gas Pipeline Project laid foundation for Jiangxi Provincial gas pipeline network. The branches of West-East Gas Pipeline 2 are the first layer of the provincial gas pipeline network, including:
Fengcheng-Yujiang Gas Pipeline
|
西气东输二线高余线(丰城-余江)
|
Jiujiang-Gao'an Gas Pipeline
|
西气东输二线九高线(九江-新建-高安)
|
Linchuan-Lichuan Branch
|
西气东输二线黎川支线(临川-黎川)
|
Yugan-Jingdezhen Gas Pipeline
|
西气东输二线余景线(余干-景德镇)
|
XinYu Branch(Gao’an-Xinyu)
|
西气东输二线新余支线
|
Yujiang-Yingtan Branch
|
西气东输二线鹰潭支线(余江-鹰潭)
|
Jiangxi Provincial gas pipeline network began initial construction in 2008, and consists of two central phases of development.[3] The phases are distinguished by the area that they cover, as well as the source of the natural gas. Phase I sources from Sinopec's Sichuan-Shanghai Gas Pipeline (川气东送输气管线) and Phase II from PetroChina's West-East Gas Pipeline 2 and West-East Gas Pipeline 3.[4][5] When completed, the network will exceed 2,000 kilometers and provide natural gas to the majority of Jiangxi's 11 districts and 70 counties.[4]
Phase 1 was developed by Jiangxi Natural Gas Pipeline Co.,Ltd.江西省天然气管道有限公司, a joint venture of Jiangxi Investment Group and Sinopec. This phase was mainly completed between 2009-2010 and consists of 6 trunk pipelines and forms a rim network surrounding Poyang Lake - China's largest freshwater lake. In total, Phase I is 870 kilometers, and consists of 10 gas transmission stations, with a total designed capacity of 5.7 billion cubic meters per year.[6]
While Phase I continues to add new branches in northern Jiangxi, Phase II was proposed in the southern part of Jiangxi. The total length of Phase II is planned to reach 852 kilometers and will cover 10 cities and 50 counties. Of the 852 kilometer total, 332 kilometers will be sourced from West-East Gas Pipeline 2, and 520 kilometers will be from West-East Gas Pipeline 3. The pressure is designed for 6.3 MPa, and the total investment for Phase II is 4.04 billion RMB.[7]
In May 2021, Jiangxi Province announced the expansion of the Jiangxi Natural Gas Pipeline Network, with over 30 additional natural gas pipelines to begin construction in the following years.[8] Jiangxi Natural Gas Pipeline Network also received a loan of 2.76 billion RMB (equal to 400 million USD) from The New Development Bank. A total domestic loan of 63.69 billion RMB was also announced, funded by the provincial finance department (20 billion RMB), the China Development Bank (11.7 billion RMB), and the Agricultural Bank of China (323.5 million RMB), amongst others.
Phase I
- Jiujiang-Nanchang 九江-南昌输气干线
- Jiujiang-Jingdezhen 九江-景德镇输气干线
- Jiujiang-Shahe 九江-沙河输气干线
- Nanchang-Fengcheng 南昌-丰城输气干线
- Gao'an-Xinyu 高安-新余输气干线
- Gao'an-Fengcheng 高安-丰城输气干线
- Fengcheng-Fuzhou 丰城-抚州输气干线
- Tiannan-Shanggao 田南-上高输气支线
- Fengxin Branch(Chigang-Fengxin) 奉新支线
- Yifeng Branch(Shanggao-Yifeng) 宜丰支线
- Zhangshu Branch 樟树支线
- Jinshawan Branch (Hukou-Jinshawan) 金沙湾支线(湖口-金沙湾)
- Shenguili-Pengze Branch 沈贵里-彭泽支线
- Guangfeng-Yushan Branch 广丰-玉山支线
- Wanzai-Tonggu Branch 万载—铜鼓支线
- Cailing-Duchang Branch 蔡岭-都昌支线
- Yongxiu-Wuning-Xiushui Branch 永修-武宁-修水支线
- Yifeng-Tonggu Branch 宜丰-铜鼓支线
Phase II
- Jinggangshan Branch 井冈山支线
- Leping-Dexing-Maoyuan 乐平-德兴-婺源管线
- Yudu-Ningdu-Guangchang-Nanfeng Gas Pipeline 西三线于都分输站-宁都-广昌-南丰输气管线
- Jingkai District-Jishui-Yongfeng-Le'an-Yihuang Gas Pipeline 井开区-吉水-永丰-乐安-宜黄输气管线
- Ganzhou South Branch (Longnan-Quannan Segment) 赣州南支线 (龙南-全南段)
- Ganzhou South Branch (Dayu-Xinfeng Segment) 赣州南支线 (大余-信丰段)
- Ganzhou South Branch (Huichang-Xunwu Segment) 赣州南支线 (会昌-寻乌段)
- Ganzhou South Branch (Xinfeng-Ruijin Segment) 赣州南支线 (信丰-瑞金段)
- Ganzhou-Fengxin Branch (干洲-奉新支线)
Details for West-East Gas Pipeline 2's Branches in Jiangxi
Gao'an-Yujiang Gas Pipeline 西气东输二线高余线(高安-余江)[9]
- Operator: West To East Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd. (国家石油天然气管网集团有限公司西气东输分公司)[9][10]
- Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd.(国家石油天然气管网集团有限公司)[10]
- Parent company:
- Capacity: 3 bcm/year[9]
- Length: 174.45 km[9]
- Diameter:
- Status: Operating[9]
- Start year: 2010[9]
- Cost:
Jiujiang-Gao'an Gas Pipeline 西气东输二线九高线(九江-新建-高安)[9]
- Operator: West To East Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd. (国家石油天然气管网集团有限公司西气东输分公司)[9][10]
- Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd.(国家石油天然气管网集团有限公司)[10]
- Parent company:
- Capacity: 3 billion cubic meters per year[9]
- Length: 210.32 km[9]
- Diameter:
- Status: Operating[9]
- Start year: 2010[9]
- Cost:
Linchuan-Lichuan Branch 西气东输二线黎川支线(临川-黎川)[9]
- Operator: West To East Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd. (国家石油天然气管网集团有限公司西气东输分公司)[9][10]
- Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd.(国家石油天然气管网集团有限公司)[10]
- Parent company:
- Capacity: 0.48 billion cubic meters per year[9]
- Length: 125.18 kilometers[9]
- Diameter:
- Status: Operating[9]
- Start year: 2015[9]
- Cost:
Yujiang-Jingdezhen Gas Pipeline 西气东输二线余景线(余江-景德镇)[9]
- Operator: West To East Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd. (国家石油天然气管网集团有限公司西气东输分公司)[9][10]
- Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd.(国家石油天然气管网集团有限公司)[10]
- Parent company:
- Capacity: 3 billion cubic meters per year[9]
- Length: 136.55 kilometers [9]
- Diameter:
- Status: Operating[9]
- Start year: 2014[9]
- Cost:
Yujiang-Yingtan Branch 西气东输二线鹰潭支线(余江-鹰潭)[9]
- Operator: West To East Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd. (国家石油天然气管网集团有限公司西气东输分公司)[9][10]
- Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd.(国家石油天然气管网集团有限公司)[10]
- Parent company:
- Capacity: 0.4 billion cubic meters per year[9]
- Length: 40.23 kilometers[9]
- Diameter:
- Status: Operating[9]
- Start year: 2015[9]
- Cost:
XinYu Branch(Gao’an-Xinyu) 西气东输二线新余支线(高安-新余)[9]
- Operator: West To East Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd. (国家石油天然气管网集团有限公司西气东输分公司)[9][10]
- Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd.(国家石油天然气管网集团有限公司)[10]
- Parent company:
- Capacity: 1 billion cubic meters per year[9]
- Length: 69.21 kilometers[9]
- Diameter:
- Status: Operating[9]
- Start year: 2010[9]
- Cost:
Phase I details
Jiujiang-Nanchang 九江-南昌输气干线
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":29.2218009,"lon":115.6991274,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":29.6788497,"lon":116.0545924},{"lat":29.5019079,"lon":116.0436908},{"lat":29.4597327,"lon":116.0046986},{"lat":29.4263109,"lon":115.9601362},{"lat":29.3857272,"lon":115.9036373},{"lat":29.346735,"lon":115.8988628},{"lat":29.3164962,"lon":115.8614621},{"lat":29.2910319,"lon":115.8511173},{"lat":29.2679549,"lon":115.7898438},{"lat":29.2440822,"lon":115.7222044},{"lat":29.2218009,"lon":115.6991274},{"lat":29.201907,"lon":115.6991274},{"lat":29.1411529,"lon":115.6781427},{"lat":29.0816164,"lon":115.6555599},{"lat":29.0159209,"lon":115.6329771},{"lat":28.9204571,"lon":115.6196327},{"lat":28.8732385,"lon":115.6062883},{"lat":28.8362848,"lon":115.6165532},{"lat":28.7859867,"lon":115.5929439},{"lat":28.6452232,"lon":115.500658}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity:
- Length:
- Diameter:
- Status: Operating[12]
- Start year: 2010[12]
- Cost:
Jiujiang-Jingdezhen 九景线(九江-景德镇输气干线)
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11][13]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity: 2.6 bcm/year[13]
- Length: 150 km[13]
- Diameter: 508 mm[13]
- Status: Operating[4]
- Start year: 2010[4]
- Cost: 800 million RMB[13]
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":29.3173033,"lon":116.6437622,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":29.6788509,"lon":116.0545736},{"lat":29.6738294,"lon":116.1717418},{"lat":29.6386789,"lon":116.258781},{"lat":29.5516397,"lon":116.2855623},{"lat":29.4227547,"lon":116.3407988},{"lat":29.3859304,"lon":116.3859922},{"lat":29.35078,"lon":116.4864221},{"lat":29.330694,"lon":116.5650921},{"lat":29.3173033,"lon":116.6437622},{"lat":29.3055865,"lon":116.7241061},{"lat":29.3055865,"lon":116.8228622},{"lat":29.2838267,"lon":116.8881416},{"lat":29.2536978,"lon":116.9249659},{"lat":29.2336118,"lon":116.9802023},{"lat":29.2252426,"lon":117.0019621},{"lat":29.211852,"lon":117.0287434}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
Jiujiang-Shahe 九江-沙河输气干线
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":29.5745577,"lon":115.9563891,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":29.6788495,"lon":116.0545719},{"lat":29.6329562,"lon":116.0219874},{"lat":29.5937572,"lon":115.9827884},{"lat":29.5745577,"lon":115.9563891},{"lat":29.5721577,"lon":115.9243899},{"lat":29.5729577,"lon":115.9123902}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":8,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity:
- Length:
- Diameter:
- Status: Operating[3]
- Start year: 2010[3]
- Cost:
Nanchang-Fengcheng 南昌-丰城输气干线
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":28.2786309,"lon":115.3953674,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":28.6451467,"lon":115.5007151},{"lat":28.6029805,"lon":115.5194061},{"lat":28.5706225,"lon":115.5417485},{"lat":28.5451985,"lon":115.5486823},{"lat":28.5313308,"lon":115.551764},{"lat":28.4958912,"lon":115.5502232},{"lat":28.4743192,"lon":115.5355851},{"lat":28.4542881,"lon":115.5063089},{"lat":28.4180781,"lon":115.4716397},{"lat":28.392654,"lon":115.4492973},{"lat":28.3618369,"lon":115.4277253},{"lat":28.3356424,"lon":115.4046125},{"lat":28.3210043,"lon":115.3953674},{"lat":28.3048254,"lon":115.3915153},{"lat":28.2924985,"lon":115.3922857},{"lat":28.2832534,"lon":115.3930561},{"lat":28.2786309,"lon":115.3953674},{"lat":28.275492,"lon":115.3959828},{"lat":28.270057,"lon":115.3984553},{"lat":28.2687755,"lon":115.3994317},{"lat":28.2624389,"lon":115.4192525},{"lat":28.2615435,"lon":115.4470085},{"lat":28.2615435,"lon":115.483718},{"lat":28.2579621,"lon":115.5123694},{"lat":28.2516946,"lon":115.5302765},{"lat":28.2382643,"lon":115.5732535},{"lat":28.2311015,"lon":115.5956374},{"lat":28.2060315,"lon":115.6180213},{"lat":28.1809616,"lon":115.6395098},{"lat":28.1603684,"lon":115.6583122},{"lat":28.1281357,"lon":115.6798008},{"lat":28.0967982,"lon":115.6968125},{"lat":28.0842633,"lon":115.7084521},{"lat":28.0636578,"lon":115.730867},{"lat":28.0533551,"lon":115.7485288},{"lat":28.0467319,"lon":115.7801729},{"lat":28.0445242,"lon":115.8140247},{"lat":28.0445242,"lon":115.8243274}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Owner: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Parent company: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Capacity:
- Length:
- Diameter:
- Status: Operating[4]
- Start year: 2010[4]
- Cost:
Gao'an-Xinyu 高安-新余输气干线
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":28.0633189,"lon":115.0826995,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":28.270806,"lon":115.3980799},{"lat":28.2227335,"lon":115.3460692},{"lat":28.1685353,"lon":115.252226},{"lat":28.1454509,"lon":115.2080644},{"lat":28.1063077,"lon":115.1448332},{"lat":28.0633189,"lon":115.0826995},{"lat":28.0428273,"lon":115.049662},{"lat":28.0202447,"lon":115.0249884},{"lat":27.9855344,"lon":115.0074242},{"lat":27.9562606,"lon":114.9898599},{"lat":27.935769,"lon":114.9735503}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity:
- Length:
- Diameter:
- Status: Operating[14]
- Start year: 2010[14]
- Cost:
Gao'an-Fengcheng 高安-丰城输气干线
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":28.0633189,"lon":115.0826995,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":28.270806,"lon":115.3980799},{"lat":28.2227335,"lon":115.3460692},{"lat":28.1685353,"lon":115.252226},{"lat":28.1454509,"lon":115.2080644},{"lat":28.1063077,"lon":115.1448332},{"lat":28.0633189,"lon":115.0826995},{"lat":28.0428273,"lon":115.049662},{"lat":28.0202447,"lon":115.0249884},{"lat":27.9855344,"lon":115.0074242},{"lat":27.9562606,"lon":114.9898599},{"lat":27.935769,"lon":114.9735503}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity:
- Length:
- Diameter:
- Status: Operating[3]
- Start year: 2010[3]
- Cost:
Fengcheng-Fuzhou Gas Pipeline 丰城-抚州输气干线
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":28.0471384,"lon":116.1203606,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":28.0444519,"lon":115.8243916},{"lat":28.0364557,"lon":115.8738958},{"lat":28.0257731,"lon":115.9196788},{"lat":28.0234839,"lon":115.9486746},{"lat":28.0189056,"lon":115.9646986},{"lat":28.0288252,"lon":116.0112446},{"lat":28.0395079,"lon":116.0822081},{"lat":28.0471384,"lon":116.1203606},{"lat":28.0494276,"lon":116.1829306},{"lat":28.0692668,"lon":116.2264243},{"lat":28.0707929,"lon":116.2821269},{"lat":28.0830017,"lon":116.361484},{"lat":28.0891061,"lon":116.4156604},{"lat":28.0905164,"lon":116.4347868}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity:
- Length:
- Diameter: DN508[15]
- Status: Operating[5]
- Start year: 2011[16]
- Cost:
Tiannan-Shanggao 田南-上高输气支线
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":28.1850562,"lon":114.9563417,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":28.2052488,"lon":114.9038971},{"lat":28.1948721,"lon":114.9296987},{"lat":28.1850562,"lon":114.9563417},{"lat":28.1629005,"lon":114.9855088},{"lat":28.1471951,"lon":115.0051405},{"lat":28.1340138,"lon":115.0516956}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":9,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity: 0.13 bcm/year[9]
- Length: 29.41 km[9]
- Diameter:
- Status: Operating[5]
- Start year: 2012[9]
- Cost:
Yongxiu-Wuning-Xiushui Branch 永修—武宁—修水支线
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":29.0221905,"lon":114.6758506,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":29.1675418,"lon":115.6873268},{"lat":29.1454497,"lon":115.6797552},{"lat":29.1033619,"lon":115.6639157},{"lat":29.0970261,"lon":115.6613512},{"lat":29.0946124,"lon":115.6604461},{"lat":29.0882766,"lon":115.6581833},{"lat":29.0608215,"lon":115.6485287},{"lat":29.0537314,"lon":115.6459642},{"lat":29.0429619,"lon":115.6419008},{"lat":29.075446,"lon":115.577067},{"lat":29.100121,"lon":115.5444833},{"lat":29.122898,"lon":115.5125323},{"lat":29.1317557,"lon":115.4704582},{"lat":29.1448878,"lon":115.4301624},{"lat":29.1538942,"lon":115.3879017},{"lat":29.1656717,"lon":115.3449482},{"lat":29.1767565,"lon":115.3054586},{"lat":29.1906125,"lon":115.2666619},{"lat":29.1933837,"lon":115.2230155},{"lat":29.1954621,"lon":115.1779836},{"lat":29.2016973,"lon":115.1378012},{"lat":29.2086253,"lon":115.0796061},{"lat":29.1885341,"lon":115.031803},{"lat":29.1725997,"lon":115.0137902},{"lat":29.1448878,"lon":114.9846926},{"lat":29.1365024,"lon":114.9481207},{"lat":29.1226464,"lon":114.9044743},{"lat":29.1115616,"lon":114.8670632},{"lat":29.0942416,"lon":114.8254952},{"lat":29.0734576,"lon":114.7901625},{"lat":29.0547521,"lon":114.7520585},{"lat":29.0395105,"lon":114.722961},{"lat":29.0221905,"lon":114.6758506},{"lat":29.0104129,"lon":114.6488315},{"lat":28.9979425,"lon":114.6169627},{"lat":28.9556818,"lon":114.574702},{"lat":28.930741,"lon":114.5525324},{"lat":28.9044147,"lon":114.5303628},{"lat":28.8670035,"lon":114.5033437},{"lat":28.8413699,"lon":114.4784029},{"lat":28.7921812,"lon":114.4652397},{"lat":28.7644692,"lon":114.4624685},{"lat":28.7300029,"lon":114.4520266},{"lat":28.6885488,"lon":114.4387021},{"lat":28.653757,"lon":114.4342606},{"lat":28.6145237,"lon":114.4275983},{"lat":28.5582647,"lon":114.4253776},{"lat":28.5091301,"lon":114.4187515},{"lat":28.4761918,"lon":114.4162178},{"lat":28.4407198,"lon":114.4206518},{"lat":28.4020806,"lon":114.4193849},{"lat":28.3596408,"lon":114.4231855},{"lat":28.3292362,"lon":114.4326869},{"lat":28.2886967,"lon":114.4339538},{"lat":28.2494241,"lon":114.4358541},{"lat":28.2126852,"lon":114.4396547},{"lat":28.1765797,"lon":114.4402881},{"lat":28.1404742,"lon":114.4434552},{"lat":28.0789782,"lon":114.4483325},{"lat":28.0413983,"lon":114.4460777},{"lat":28.0083281,"lon":114.4483325},{"lat":27.961729,"lon":114.4490841},{"lat":27.9294104,"lon":114.4513388},{"lat":27.8895757,"lon":114.4445745},{"lat":27.8444799,"lon":114.4430713}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity: 0.31 bcm/year[17]
- Length: 138 km[17]
- Diameter: DN300[18]
- Status: Construction[17]
- Start year:
- Cost: 598 million RMB[17]
Yifeng-Tonggu Branch 宜丰-铜鼓支线
Yifeng-Tonggu Branch 宜丰-铜鼓支线 is a segment of the Yongxiu-Wuning-Xiushui-Tonggu-Yifeng Branch 永修—武宁—修水-铜鼓-宜丰支线.
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity:
- Length:
- Diameter:
- Status: Proposed
- Start year:
- Cost:
Fengxin Branch(Chigang-Fengxin) 奉新支线(赤岗-奉新)
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity: 0.1 billion cubic meters per year[9]
- Length: 18.45 kilometers[9]
- Diameter: 219 mm[19]
- Status: Operating[9]
- Start year: 2013[9]
- Cost:

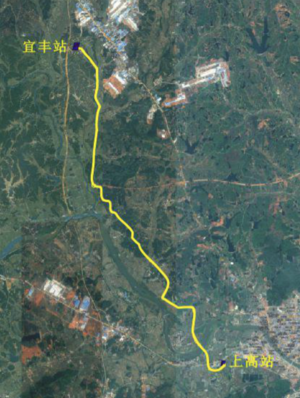

Yifeng Branch(Shanggao-Yifeng) 宜丰支线(上高-宜丰)
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity: 0.2 billion cubic meters per year[9]
- Length: 17.9 kilometers[9]
- Diameter:
- Status: Operating[9]
- Start year: 2017[9]
- Cost:
Zhangshu Branch 樟树支线
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity: 0.13 billion cubic meters per year[9]
- Length: 20.2 kilometers[20]
- Diameter: 508 mm[20]
- Status: Construction[20]
- Start year:
- Cost: 110 million RMB[20]
Jinshawan Branch (Hukou-Jinshawan) 金沙湾支线(湖口-金沙湾)
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity: 0.5 bcm/year[21]
- Length: 19.12 kilometers[21]
- Diameter: 500 mm[21]
- Status: Operating[21]
- Start year:
- Cost: 80.81 million RMB[21]
Shenguili-Pengze Branch 沈贵里-彭泽支线
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity:
- Length: 18.5 km[22]
- Diameter: 200 mm[22]
- Status: Proposed[22]
- Start year:
- Cost: 63.61 million RMB[22]
Guangfeng-Yushan Branch 广丰-玉山支线
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity:
- Length: 23.3 km[23]
- Diameter:
- Status: Operating[23]
- Start year:
- Cost:
Wanzai-Tonggu Branch 万载—铜鼓支线
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity:
- Length: 64.28 km[24]
- Diameter: 300 mm[24]
- Status: Construction[24]
- Start year:
- Cost: 280 million RMB[24]
Cailing-Duchang Branch 蔡岭-都昌支线
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity: 0.06 bcm/year[25]
- Length: 31.32 km[25]
- Diameter: 200 mm[25]
- Status: Construction[25]
- Start year:
- Cost: 85.55 million RMB[25]
Phase II details
Jinggangshan Branch 井冈山支线
This pipeline's sources include the West-East Gas Pipeline 2, the West-East Gas Pipeline 3, and the Sichuan–Shanghai Gas Pipeline.
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":26.903611,"lon":114.735354,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":27.149344,"lon":115.001444},{"lat":27.020345,"lon":114.892871},{"lat":26.961531,"lon":114.243009},{"lat":26.744513,"lon":114.267105}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11][26]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity: 0.32 bcm/year[27]
- Length: 129 kilometers[26]
- Diameter: 300 mm[26]
- Status: Operating[28]
- Start year: 2018[28]
- Cost: 520 million RMB[27]
Leping-Dexing-Wuyuan 乐平-德兴-婺源管线
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":28.9543896,"lon":117.4212967,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":29.0464586,"lon":117.0474963},{"lat":29.033569,"lon":117.0893878},{"lat":29.0160758,"lon":117.1331206},{"lat":29.0008844,"lon":117.1708689},{"lat":28.9852327,"lon":117.2122999},{"lat":28.9718827,"lon":117.2482069},{"lat":28.9635965,"lon":117.3025276},{"lat":28.9599137,"lon":117.3365932},{"lat":28.9553103,"lon":117.3812467},{"lat":28.9543896,"lon":117.4212967},{"lat":28.9493258,"lon":117.4691726},{"lat":28.9507068,"lon":117.5336209},{"lat":28.9737241,"lon":117.5672261},{"lat":28.9935189,"lon":117.59899},{"lat":29.0160758,"lon":117.6358176},{"lat":29.0409345,"lon":117.6602159},{"lat":29.0745397,"lon":117.688297},{"lat":29.1063035,"lon":117.716378},{"lat":29.1343846,"lon":117.7366332},{"lat":29.1624656,"lon":117.7633332},{"lat":29.2218502,"lon":117.7927953}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity: 0.28 bcm/year[29]
- Length: 97 km[29]
- Diameter: 200 mm[30]
- Status: Construction[29]
- Start year:
- Cost: 380 million RMB[29]
Yudu-Ningdu-Guangchang-Nanfeng Gas Pipeline((Including Ningdu- Shicheng section) 西三线于都分输站-宁都-广昌-南丰输气管线(包括宁都-石城段)
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":26.436672,"lon":116.0015275,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":26.229617,"lon":115.625196},{"lat":26.2492327,"lon":115.6767781},{"lat":26.2586773,"lon":115.7290867},{"lat":26.272481,"lon":115.7632327},{"lat":26.2782931,"lon":115.8039171},{"lat":26.2855581,"lon":115.8467812},{"lat":26.3015413,"lon":115.8729355},{"lat":26.3247896,"lon":115.8969103},{"lat":26.3545765,"lon":115.9245176},{"lat":26.3792778,"lon":115.9528515},{"lat":26.4076116,"lon":115.9739202},{"lat":26.436672,"lon":116.0015275},{"lat":26.4889806,"lon":116.0465711},{"lat":26.518041,"lon":116.0894351},{"lat":26.5340241,"lon":116.125034},{"lat":26.5500073,"lon":116.163539},{"lat":26.5696231,"lon":116.2042235},{"lat":26.5870593,"lon":116.2289248},{"lat":26.6273577,"lon":116.2545767},{"lat":26.6619007,"lon":116.2624274},{"lat":26.6948735,"lon":116.2734183},{"lat":26.7309866,"lon":116.2875496},{"lat":26.7686699,"lon":116.3001106},{"lat":26.8000726,"lon":116.3142419},{"lat":26.8691585,"lon":116.3362237},{"lat":26.9087668,"lon":116.3446327},{"lat":26.9545624,"lon":116.3564087},{"lat":26.9728806,"lon":116.3642594},{"lat":27.0226015,"lon":116.3747269},{"lat":27.0644718,"lon":116.3917367},{"lat":27.1063421,"lon":116.4231394},{"lat":27.1377448,"lon":116.4493083},{"lat":27.1639137,"lon":116.4676266},{"lat":27.1979333,"lon":116.4898702},{"lat":27.2384951,"lon":116.5055715},{"lat":27.2895245,"lon":116.5278151}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":5,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity: 0.31 bcm/year[31]
- Length: 234.20 km[31]
- Diameter: 355.6 mm, 273.1mm( Ningdu-Shicheng)[31]
- Status: Construction[31]
- Start year:
- Cost: 802 million RMB[32]
Jingkai District-Jishui-Yongfeng-Le'an-Yihuang Gas Pipeline 井开区-吉水-永丰-乐安-宜黄输气管线
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":27.2653069,"lon":115.4376978,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":27.1022496,"lon":115.0109749},{"lat":27.119172,"lon":115.0514006},{"lat":27.1379746,"lon":115.0824249},{"lat":27.157404,"lon":115.1215971},{"lat":27.1768334,"lon":115.1610826},{"lat":27.1743264,"lon":115.2090293},{"lat":27.1862347,"lon":115.2435008},{"lat":27.212245,"lon":115.2773456},{"lat":27.2316744,"lon":115.3105635},{"lat":27.2529841,"lon":115.3494223},{"lat":27.2687835,"lon":115.3977161},{"lat":27.2653069,"lon":115.4376978},{"lat":27.2783444,"lon":115.4776794},{"lat":27.2861669,"lon":115.5193994},{"lat":27.3148494,"lon":115.6045777},{"lat":27.3374477,"lon":115.6767186},{"lat":27.3530927,"lon":115.7392985},{"lat":27.3635227,"lon":115.7740652},{"lat":27.3878593,"lon":115.8227385},{"lat":27.4139343,"lon":115.9070477},{"lat":27.4321868,"lon":115.9878802},{"lat":27.4469627,"lon":116.0278618},{"lat":27.4608693,"lon":116.0669743},{"lat":27.4782527,"lon":116.1026101},{"lat":27.4912902,"lon":116.1512835},{"lat":27.4982435,"lon":116.1843118},{"lat":27.5156268,"lon":116.2277701},{"lat":27.5230896,"lon":116.2844707}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity:
- Length: 175.5 kilometers[33]
- Diameter: 350 mm[33]
- Status: Construction[34]
- Start year:
- Cost: 527 million RMB[33]
Ganzhou South Branch (Longnan-Quannan Segment) 赣州南支线 (龙南-全南段)
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":24.8709495,"lon":114.6679436,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":24.9594111,"lon":114.7629383},{"lat":24.9189507,"lon":114.7250261},{"lat":24.8904094,"lon":114.6969173},{"lat":24.8709495,"lon":114.6679436},{"lat":24.8540842,"lon":114.6368077},{"lat":24.8311647,"lon":114.60005},{"lat":24.8069478,"lon":114.5736709},{"lat":24.767163,"lon":114.5330212}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity: 0.126 bcm/year[35]
- Length: 57.09 km[36]
- Diameter: 250 mm[35]
- Status: Proposed[35]
- Start year:
- Cost:
Ganzhou South Branch (Dayu-Xinfeng Segment) 赣州南支线 (大余-信丰段)
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":25.5244403,"lon":114.5573171,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":25.435528,"lon":114.3029506},{"lat":25.4656809,"lon":114.3447007},{"lat":25.4896485,"lon":114.3779462},{"lat":25.5058847,"lon":114.433613},{"lat":25.5143894,"lon":114.4815483},{"lat":25.5167088,"lon":114.5178864},{"lat":25.5244403,"lon":114.5573171},{"lat":25.4973801,"lon":114.6222617},{"lat":25.4881022,"lon":114.6578267},{"lat":25.4780513,"lon":114.7011231},{"lat":25.4734124,"lon":114.7351417},{"lat":25.4594957,"lon":114.7823039},{"lat":25.4486716,"lon":114.8124568},{"lat":25.4308705,"lon":114.880485}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":5,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity:
- Length: 57.7 kilometers
- Diameter:
- Status: Proposed
- Start year:
- Cost:
Ganzhou South Branch (Huichang-Xunwu Segment) 赣州南支线 (会昌-寻乌段)
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":25.4766023,"lon":115.7847469,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":25.6550053,"lon":115.8058231},{"lat":25.6200078,"lon":115.8120622},{"lat":25.5864845,"lon":115.8046126},{"lat":25.5461323,"lon":115.7965422},{"lat":25.5138505,"lon":115.7928173},{"lat":25.4766023,"lon":115.7847469},{"lat":25.4343877,"lon":115.7804013},{"lat":25.4014852,"lon":115.7748141},{"lat":25.3660705,"lon":115.7665284},{"lat":25.3272312,"lon":115.7632369},{"lat":25.2877337,"lon":115.7619204},{"lat":25.250211,"lon":115.7579706},{"lat":25.2126883,"lon":115.7553374},{"lat":25.1777987,"lon":115.756654},{"lat":25.1363263,"lon":115.7619204},{"lat":25.1020951,"lon":115.767845},{"lat":25.0658889,"lon":115.7744279},{"lat":25.0225078,"lon":115.7888085}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity: 0.072 bcm/year[35]
- Length: 97.5 kilometers[35]
- Diameter: 250 mm[35]
- Status: Construction[37]
- Start year:
- Cost:
Ganzhou South Branch (Xinfeng-Ruijin Segment) 赣州南支线 (信丰-瑞金段)
Loading map...
{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":24.8459438,"lon":114.9306251,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":25.4308933,"lon":114.8804526},{"lat":25.355891,"lon":114.8927948},{"lat":25.3150669,"lon":114.9022887},{"lat":25.2761417,"lon":114.9127321},{"lat":25.2429128,"lon":114.9117827},{"lat":25.2058864,"lon":114.9165297},{"lat":25.1669611,"lon":114.9184285},{"lat":25.1242383,"lon":114.9174791},{"lat":25.0882065,"lon":114.9018247},{"lat":25.0560178,"lon":114.8713301},{"lat":25.0306056,"lon":114.8493062},{"lat":24.9984168,"lon":114.8154233},{"lat":24.9594515,"lon":114.7629048},{"lat":24.918792,"lon":114.7815404},{"lat":24.8967681,"lon":114.8188116},{"lat":24.8798267,"lon":114.8442238},{"lat":24.859497,"lon":114.8798008},{"lat":24.8459438,"lon":114.9306251},{"lat":24.8391672,"lon":114.9746729},{"lat":24.8374731,"lon":114.9966968},{"lat":24.8374731,"lon":115.0644626},{"lat":24.8527204,"lon":115.1271459},{"lat":24.8866033,"lon":115.1474757},{"lat":24.918792,"lon":115.1711937},{"lat":24.9492866,"lon":115.1932176},{"lat":24.9713105,"lon":115.2067707},{"lat":25.000111,"lon":115.2423478},{"lat":25.0153583,"lon":115.2745365},{"lat":25.0322997,"lon":115.315196},{"lat":25.0560178,"lon":115.3406082},{"lat":25.0712651,"lon":115.3727969},{"lat":25.0882065,"lon":115.3931267},{"lat":25.1153128,"lon":115.396515},{"lat":25.1779962,"lon":115.4066798},{"lat":25.2237381,"lon":115.4100681},{"lat":25.2728683,"lon":115.4253154},{"lat":25.3186102,"lon":115.4422569},{"lat":25.374517,"lon":115.4659749},{"lat":25.3999291,"lon":115.5083285},{"lat":25.4253413,"lon":115.5472938},{"lat":25.4507535,"lon":115.5981182},{"lat":25.4863305,"lon":115.6591074},{"lat":25.5134368,"lon":115.6794371},{"lat":25.5591788,"lon":115.7302615},{"lat":25.5913675,"lon":115.7522854},{"lat":25.5981441,"lon":115.7658385},{"lat":25.6608274,"lon":115.8098863},{"lat":25.7235108,"lon":115.842075},{"lat":25.7573937,"lon":115.8810404},{"lat":25.7777234,"lon":115.9030642},{"lat":25.796359,"lon":115.9403354},{"lat":25.8200771,"lon":115.9877715},{"lat":25.8844546,"lon":116.0369017}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":5,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11] [36]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity: 0.87 bcm/year[35]
- Length: 340.3 kilometers[35]
- Diameter: 450 mm[35]
- Status: Operating
- Start year: 2018
- Cost: 2.17 billion RMB[36]
Ganzhou-Fengxin Branch 干洲-奉新支线
- Operator: Jiangxi Natural Gas Pipeline Co., Ltd(江西省天然气管道有限公司)[11]
- Owner: Jiangxi Natural Gas Group Co., Ltd.(54%), National Petroleum and Natural Gas Pipeline Network(46%)[11]
- Parent company:
- Capacity:
- Length: 14.7 kilometers[38]
- Diameter: 300 mm[38]
- Status: Proposed[38]
- Start year:
- Cost: 94.58 million RMB[38]
Articles and resources
References
Related GEM.wiki articles
External resources
External articles
