Shandong Gas Pipeline Network
Shandong Gas Pipeline Network 山东输气管网 is a pipeline network with gas pipelines that are operating, in construction, and proposed in Shandong Province, China.
Location
Network Background
The gas source for Shandong province is mainly from Sinopec Ordos Gas Field, Shengli and Zhongyuan Oil Field Associated Gas, Shandong LNG Import gas, PetroChina Changqing Gas Field and Central Asia Import, CNOOC Bonan Gas Field (中海油渤南气田).[1]
The middle segment of China-Russia East gas pipeline was completed in December 2020, adding another gas source to Shandong Province.[2]
In 2015, there are 50 gas pipelines reaching 17 major cities in the province. The total mileage is 6,250 kilometers.[1]
In Shandong province 14th Five-Year Plan on Energy, the province plans to increase the gas supply from 8 billion cubic meters in 2015 to 40 billion cubic meters in 2025. The mileage of gas pipeline will pass 8,000 kilometers, possible 10,000 kilometers by 2025. [3]
The pipeline sources of the West Trunk and the North Trunk are the Longkou LNG Terminal, Penglai LNG Terminal, Yantai LNG Terminal and Dongying LNG Terminal, with a design pressure of 10 MPa.[4] The South Trunk source's pipeline sources are the Shandong LNG Terminal and Rizhao LNG Terminal.[5]
Network details
East Trunk 东干线
The pipeline starts from the LNG Ternminal of Sinopec Longkou Port in Longkou City, Yantai, and ends at the Tangtou Pigging Station of the South Trunk Line in Hedong District, Linyi, passing through 13 counties and districts in 5 prefecture-level cities including Yantai, Qingdao, Weifang, Rizhao and Linyi, with a total length of 524.5 kilometers, including a main trunk line, a branch line and a liaison line, with a design gas transmission scale of 13.9 billion cubic meters per year, and up to 30.2 billion square meters per year after long-term pressurization. [6] The design diameter of the pipeline is 1219mm, and the design pressure is 10 MPa.[7]
- Operator:
- Owner: 山东省东南管道天然气有限公司[8]
- Current capacity:
- Proposed capacity: 13.9 bcm/year[9]
- Length: 524.5 km[9]
- Diameter:1219 mm[7]
- Status: Construction[10]
- Start year: 2023

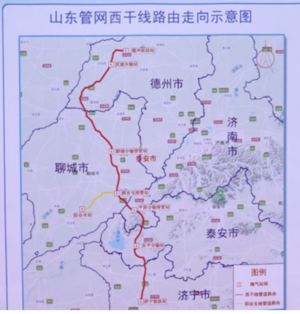

West Trunk 西干线
The pipeline runs from Dezhou to Jining, Shandong province, China. There is also a 34 km branch running from Guguantun to Yanggu.[11] [12]
- Operator: Shandong Oil&Natural Gas Company 山东石油天然气股份有限公司[13]
- Parent Company: Shandong Luxin Group 43.3923%; Zhongran Gas Industrial Shenzhen Company 中燃燃气实业(深圳)有限公司 41.0000%; Shandong State-owned Assets Supervision and Administration Commission 山东省人民政府国有资产监督管理委员会 5.6077% ; Shandong Caijin Investment Group 山东省财金投资集团有限公司 4.1752%; 44 institutional shareholders 44个法人股东 3.9197%; 山钢金控资产管理(深圳)有限公司 1.5657%; 285 natural person shareholders 285个自然人股东 0.3394%
- Current capacity:
- Proposed capacity: 20 bcm/year[11]
- Length: 195.7mi / 315 km[13]
- Diameter: 100 mm[13]
- Status: Construction[13]
- Start Year:
South Trunk 南干线
The pipeline runs from Lanshan District, Rizhao, Shandong To the boarder between Shandong and Henan, China.[5][14][15]
- Operator:Shandong Southeast Natural Gas Pipeline Company 山东省东南管道天然气有限公司[16]
- Parent Company: Luxin Group, Sinopec
- Current capacity: 15.6 bcm/year
- Proposed capacity: 33 bcm/year[16]
- Length: 329.95 mi / 510 km[16]
- Status: Construction[16]
- Start Year:

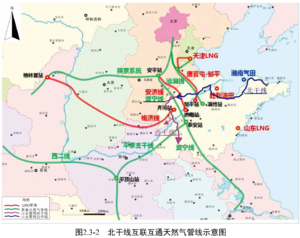

North Trunk 北干线
This article is part of the Global Fossil Infrastructure Tracker, a project of Global Energy Monitor. |
Sub-articles: |
The pipeline runs from Longkou LNG, Longkou, Yantai, to Dezhou and Laishan, Shandong province, China.[11]
- Operator: Shandong Oil&Natural Gas Company 山东石油天然气股份有限公司
- Parent Company: Shandong Luxin Group (43.3923%); Zhongran Gas Industrial Shenzhen Company 中燃燃气实业 (深圳 )有限公司 (41%); Shandong State-owned Assets Supervision and Administration Commission 山东省人民政府国有资产监督管理委员会 (5.6077%) ; Shandong Caijin Investment Group 山东省财金投资集团有限公司 (4.1752%); 44 corporate shareholders (其他44个法人股东) (3.9197%); Shangang Financial Holdings Asset Management (Shenzhen) Co., Ltd. 山钢金控资产管理 (深圳) 有限公司 (1.5657%); 285 individual shareholders (个自然人股东) (0.3394%)
- Current capacity:
- Proposed capacity: 35 bcm/year[4]
- Length: 447.4 mi / 720 km
- Diameter:DN1200/DN1000 mm[4]
- Status: Proposed
- Start Year:
Shandong LNG Terminal Transport Pipeline 山东LNG外输管线
Phase I
Phase II
The pipeline contains Phase I & II. Phase I started operating in 2014, and phase II is under the proposed stage in 2022. See page Shandong LNG Terminal Transport Pipeline.
Sishui–Jining Gas Pipeline 济宁支线
The pipeline, located within the Shandong province and under construction, is a branch of China–Russia East Pipeline but with a different owner company. See page Sishui–Jining Gas Pipeline.
Tai'an-Qingdao-Weihai Gas Pipeline 泰青威输气管线
Main Line
Zibo Branch
The pipeline contains the main route and the branch route, Zibo Branch(淄博支线). See page Tai'an-Qingdao-Weihai Gas Pipeline.
Jiaozhou-Laizhou gas pipeline 胶莱输气管线
This is an operating pipeline that runs from Laizhou to Jiaozhou City (胶州-莱州). See page Jiaozhou-Laizhou gas pipeline.
Jiaozhou-Rizhao gas pipeline 胶日输气管线
This is an operating pipeline that runs from Jiaozhou City to Rizhao City, Shandong (胶州-日照). See page Jiaozhou-Rizhao gas pipeline.
Jinan-Linzi gas pipeline 济淄输气管线
Pipeline 1
Pipeline 2
The Jinan-Linzi Gas Pipeline contains two routes. The first route started operating in 2002. See page Jinan-Linzi gas pipeline. The second route is in the proposed stage. See page Jinan-Linzi gas pipeline.
Jinan-Qingdao Gas Pipeline 济青输气管道
Jinan-Qingdao 1 Gas Pipeline
Jinan-Qingdao 2 Gas Pipeline (Qihe-Pingdu)
Jinan-Qingdao 2 Linzi Connecting Line
The Jinan-Qingdao Gas Pipeline contains two routes and one short connecting line. The first route started operating in 2003, and the second route and the connecting line started operating in 2015. See page Jinan-Qingdao Gas Pipeline
Linzi-Qingdao Gas Pipeline 淄青输气管线
This is an operating pipeline that runs from Zhangqiu, Jinan, to Linzi, Zibo, Shandong province, China. See page Linzi-Qingdao gas pipeline
Xuanzhangtun-Jining gas pipeline 宣宁输气管线
This is an operating pipeline that runs from Xuanzhantun to Jining, Shandong. In Nov 2022, the pipeline is proposed to connect to South Trunk 南干线 under Shandong Gas Pipeline Network in Qufu City, Jining City, Shandong. See page Xuanzhangtun-Jining gas pipeline
Yantai LNG Terminal Transport Pipeline 烟台LNG外输管线
The proposed pipeline is sourced from West Yantai LNG Terminal and will run between Yantai and Qihe, Jinan in Shandong Province, China. See page Yantai LNG Terminal Transport Pipeline
Zilai Gas Pipeline 淄莱输气管道
This is an operating pipeline that runs from Zhoucun District, Zibo City, to Laiwu District, Jinan City, Shandong province, China. See page Zilai Gas Pipeline
Sishui-Yishui Gas Pipeline
Phase 1: Laiwu-Yuyuan Segment
Phase 2: Sishui-Xintai-Xinanyu Segment
Phase 2: Yishui-Yiyuan Branch
Phase 2: Yishui-Yiyuan Branch
This is a proposed pipeline that runs from Sishui County, Jining City, to Yishui County, Linyi City, Shandong, China. The project is divided into 3 phases and phase 1 is proposed to operate in 2023. See page Sishui-Yishui Gas Pipeline
Liaocheng-Tai'an Gas Pipeline 聊城-泰安输气干线
This is an operating pipeline that runs from Liaocheng City to Tai'an City, Shandong, China. See page Liaocheng-Tai'an Gas Pipeline
Tai'an-Xintai Gas Pipeline 泰安—新泰天然气长输管线
This is an operating pipeline that runs from Tianping Town, Daiyue District, to Xintai City in Tai'an City, Shandong, China. See page Tai'an-Xintai Gas Pipeline
